makes sense - the only item missing off the list but it's auxiliary so wtf does that do ????
it's fed by pole 4, via diodes, (and 5) on the ign sw. ? run and crank
it's fed by pole 4, via diodes, (and 5) on the ign sw. ? run and crank
Gecko
Well-known member
The diodes prevent power being sent back to the ignition switch on the "other" line, but allows the pump to be powered from two different ignition switch positionsmakes sense - the only item missing off the list but it's auxiliary so wtf does that do ????
it's fed by pole 4, via diodes, (and 5) on the ign sw. ? run and crank
V8Druid
do it as well as you can,but learn to do it better
Gecko
Well-known member
Don't stress about it - the wire is just missing from the diagram (it obviously can't work without it!).
Vinpetrol
Well-known member
Might be to accomodate a fuel pump but there isn’t one on it as far as I can see
Vinpetrol
Well-known member

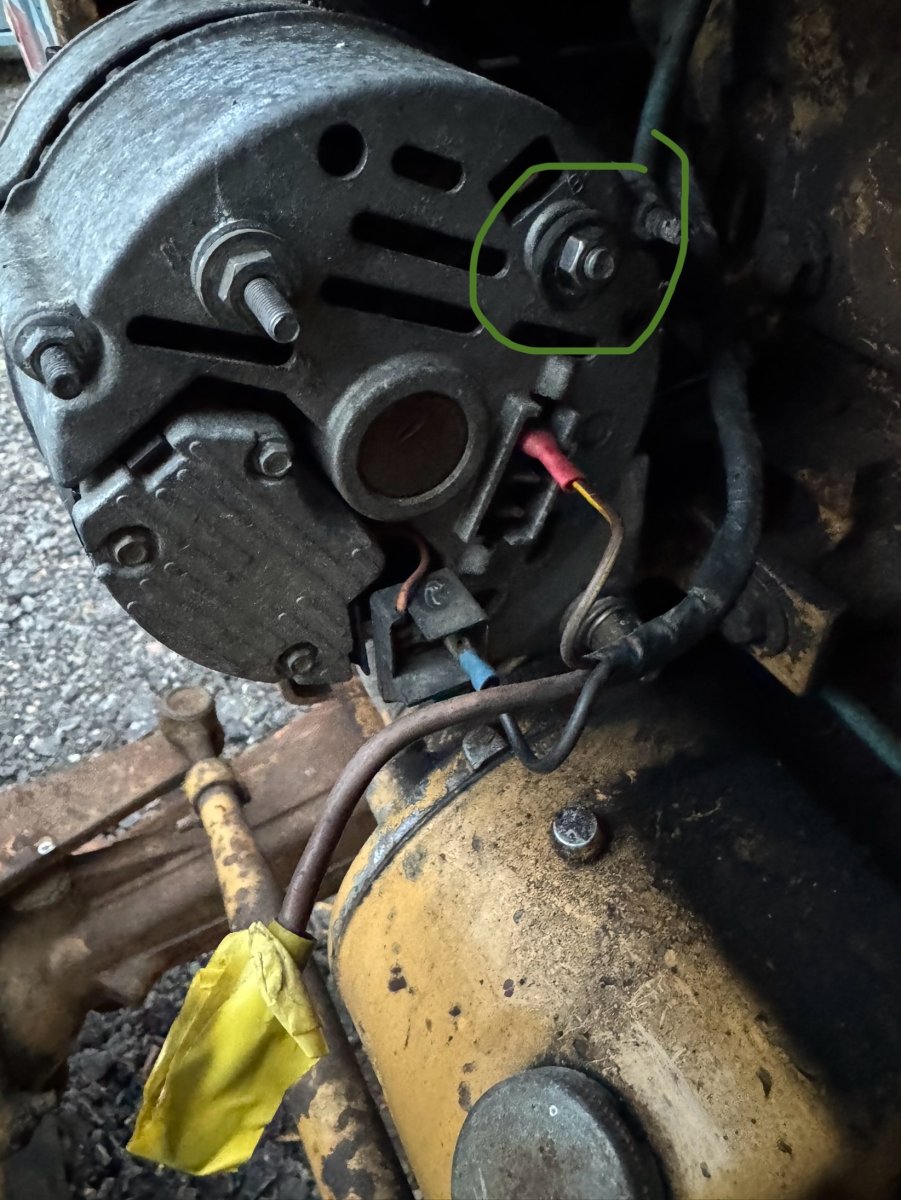

I just tried the test on the alternator without it running .
V8Druid
do it as well as you can,but learn to do it better
need to see the diagram for your new ign sw. Vin - and the sequence dia. please

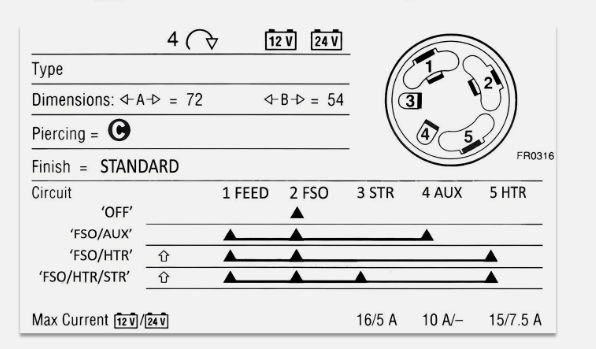

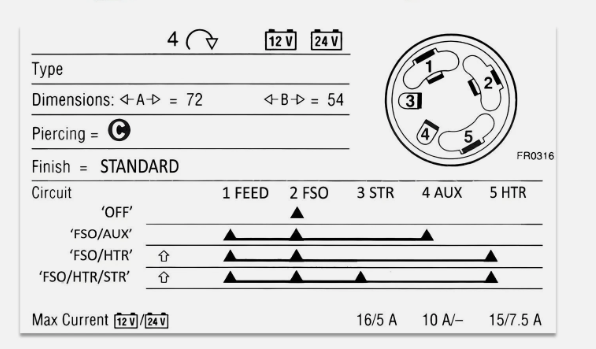

like this - it's a 5 pole, but may not be the same operational sequence for the pins
V8Druid
do it as well as you can,but learn to do it better
and?????
Vinpetrol
Well-known member
Sorry , it bloody posted before I’d finished writing ! No result . It tested with 1 on display and never changed at all .
Vinpetrol
Well-known member
It’s stilI using original ignition at the moment. I got a 5 pin ignition from dingbro but the terminals were slightly different so I decided not to use it and I ordered one from Ravenhill the ford new Holland dealer . It won’t be in til tomorrow though but it is the correct one for the machine as the 2 options are 5 pin with thermostart and 4 pin without thermostart . I think it’s terminal 4 on the ignition that energises the thermostart . It’s not working but I intend to fix it so need the wiring to be correct for it .
The wiring diagram does look the same as the original ignition .
Vinpetrol
Well-known member
Can we use the current ignition set up if we get an alternator that doesn’t need the battery temp sensor ?
Would I need to make any changes to the current wiring ?
Would I need to make any changes to the current wiring ?
V8Druid
do it as well as you can,but learn to do it better
can't see an issue with that - just insulate the wire going to the alternator's terminal currently as it'll be live at times
V8Druid
do it as well as you can,but learn to do it better
yeh, but what else is missing ???? and where does the feed originate from ????
Vinpetrol
Well-known member
Do you think I need to sort wiring first before adding new alternator ?
V8Druid
do it as well as you can,but learn to do it better
what is there to sort Vin??
Vinpetrol
Well-known member
Just the issue that your highlighting with the wire that is live all the time buddy . If we can leave that as it is will the wiring as it is just now work with a standard alternator ? If so what alternator do I order ?
V8Druid
do it as well as you can,but learn to do it better
Lucas alternator - just get the hand right
CLASSIC MINI UPRATED ALTERNATOR 70AMP GXE2297 LUCAS REPLACEMENT LRA602 R/H | eBay UK
Here we have a 70amp alternator. Suitable for Classic Mini 1989 onwards.
www.ebay.co.uk
V8Druid
do it as well as you can,but learn to do it better
although they should be swappable left/right, but requires undoing the main body bolts and rotating the front plateLucas alternator - just get the hand right
CLASSIC MINI UPRATED ALTERNATOR 70AMP GXE2297 LUCAS REPLACEMENT LRA602 R/H | eBay UK
Here we have a 70amp alternator. Suitable for Classic Mini 1989 onwards.www.ebay.co.uk
Vinpetrol
Well-known member
What’s the difference between that mini alternator and the ACR 17 /19 you mentioned earlier ?
Vinpetrol
Well-known member
I’m assuming left handed
