Well, we call them two different things, but essentially they are the same valve, just with vastly different spring rates. And a relief valve should be suitably sized to take full flow of any circuit that it’s fitted to, in the event of a ‘dead end’ it needs to take all the flow.

They are not the same though. A check valve is to prevent flow in the wrong direction a relief valve is to bleed off excess pressure



[Shovelhands]

They are not the same though. A check valve is to prevent flow in the wrong direction a relief valve is to bleed off excess pressure

I should have said ‘we call them two different names and use them for two different purposes, but essentially they are the same valve’
They are both spring loaded one way valves.



[V8Druid]

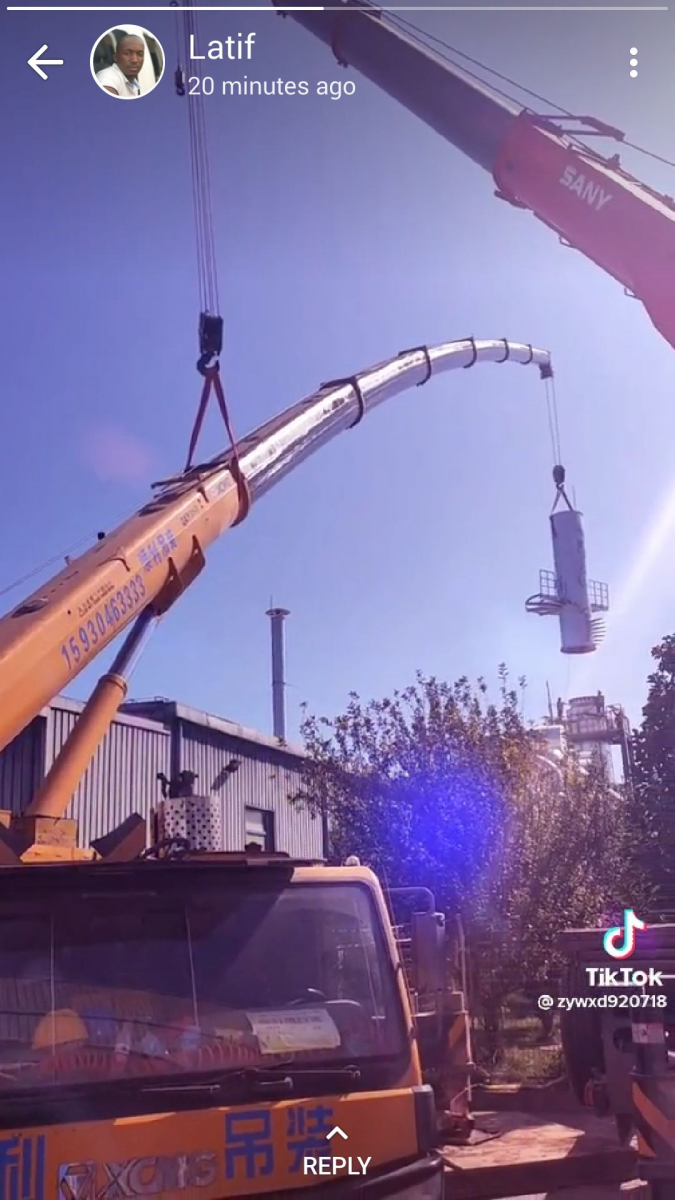

View attachment 35558

seen that done before recently, 'cept on the cat head, not the root ...... the capacity of that machine may well be structural and not stability at a given radius .... looking at the deflection on that I'd guess he was well beyond the design limits of that boom .. that really is a lap of the Gods exercise ... would not be surprised in the slightest if that did not end well



[V8Druid]

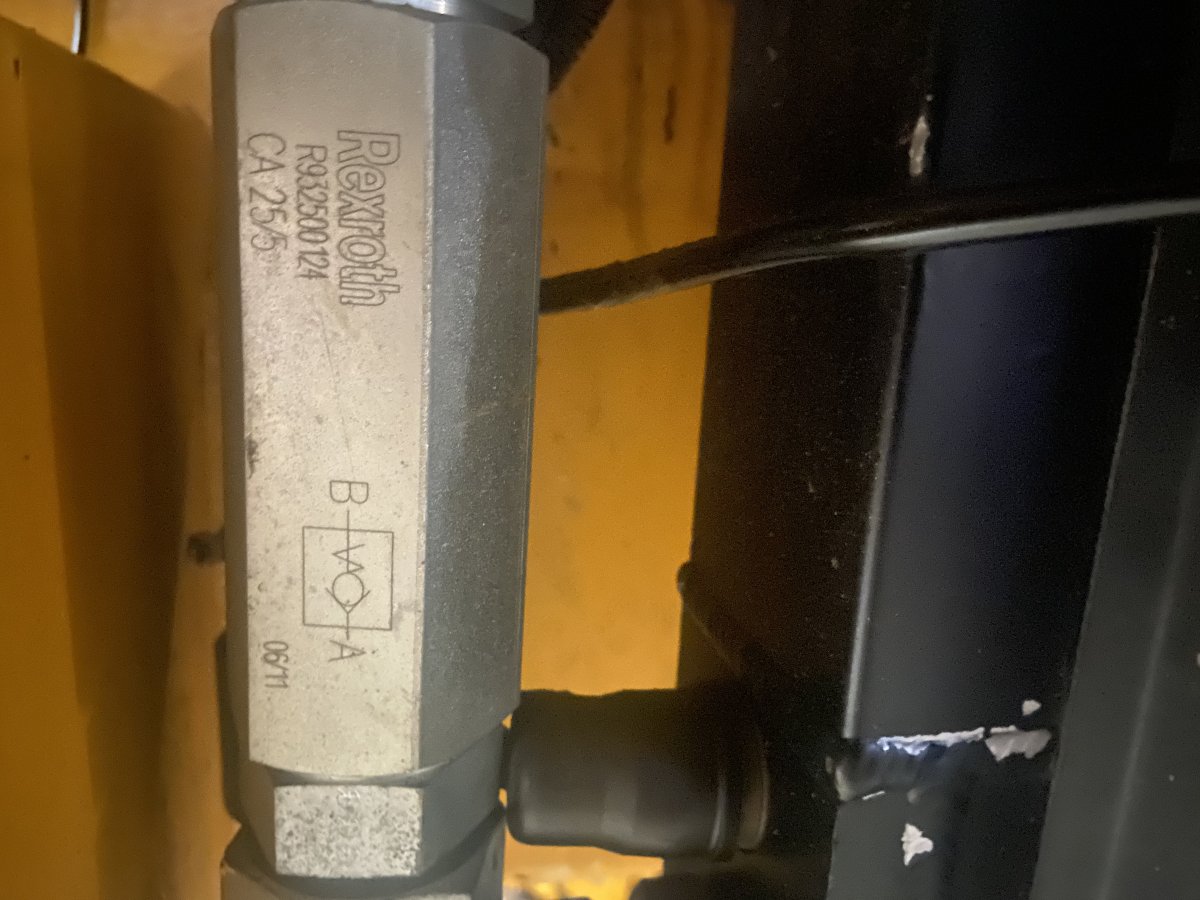

Maybe you can find some details from this part number? View attachment 35553

thank you James .... and @Gecko for the further info.
been in search of a certain item today I was pretty sure I had ......

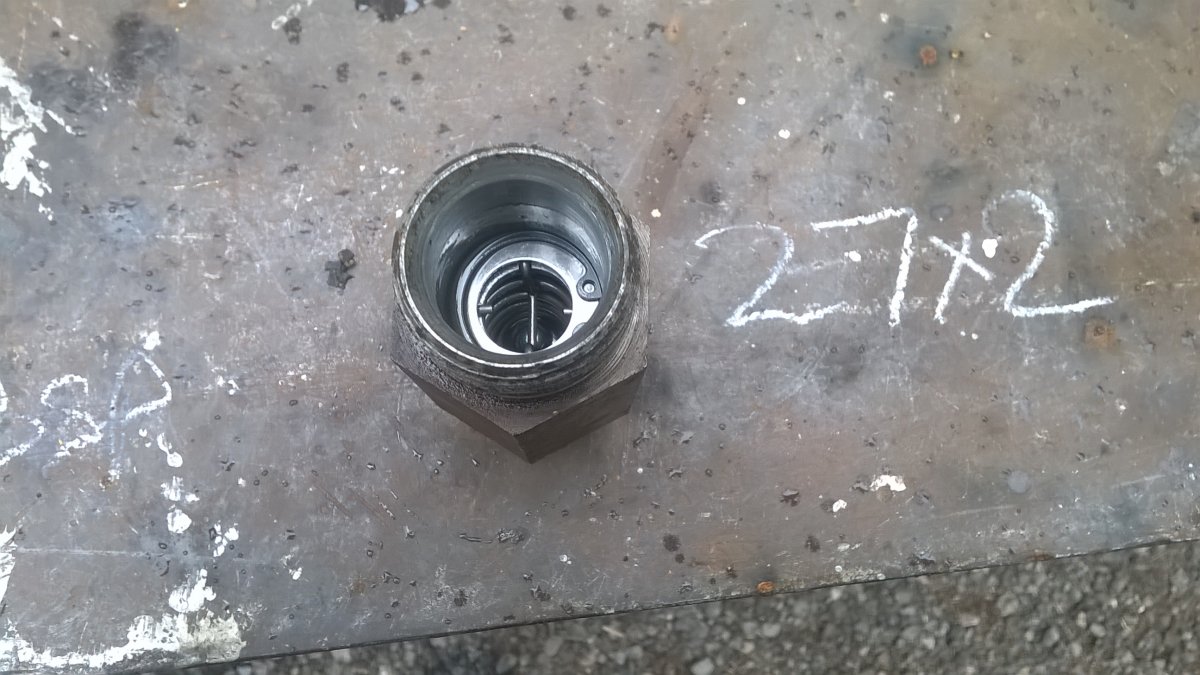

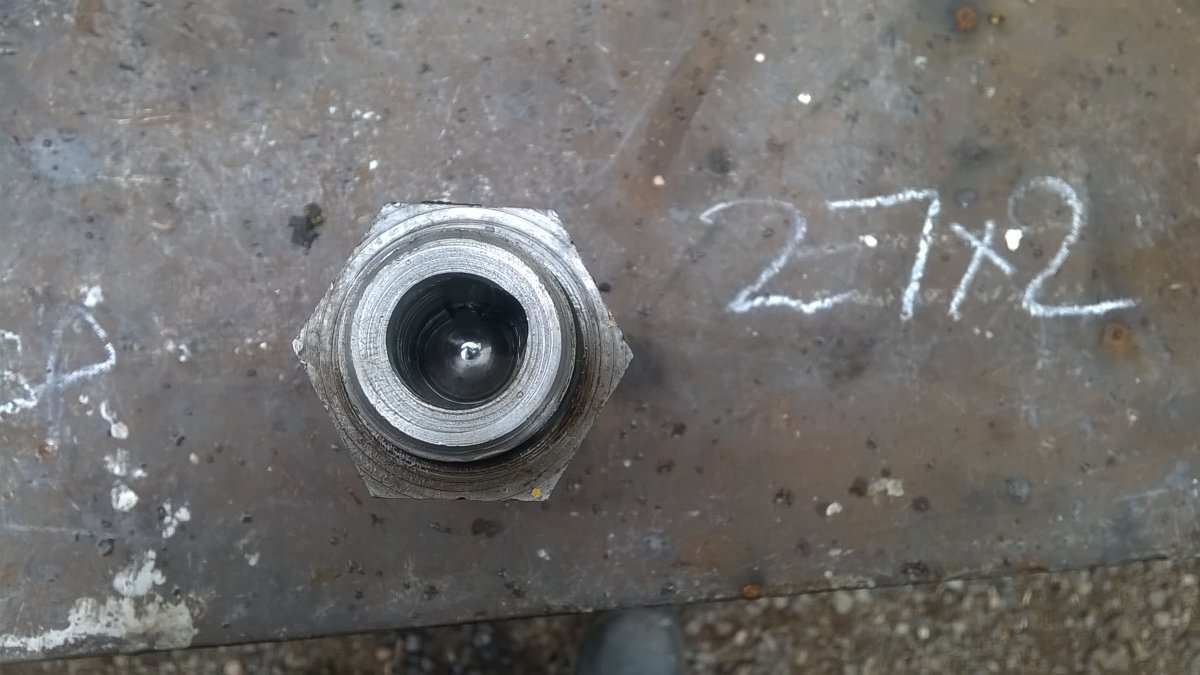

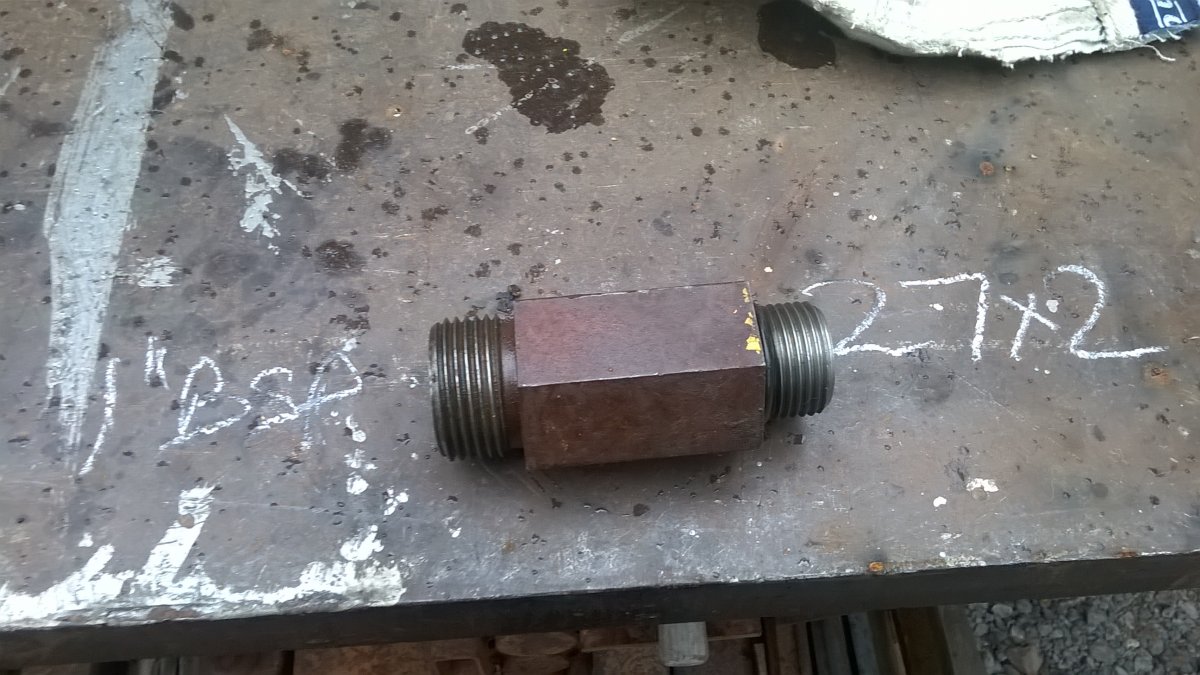

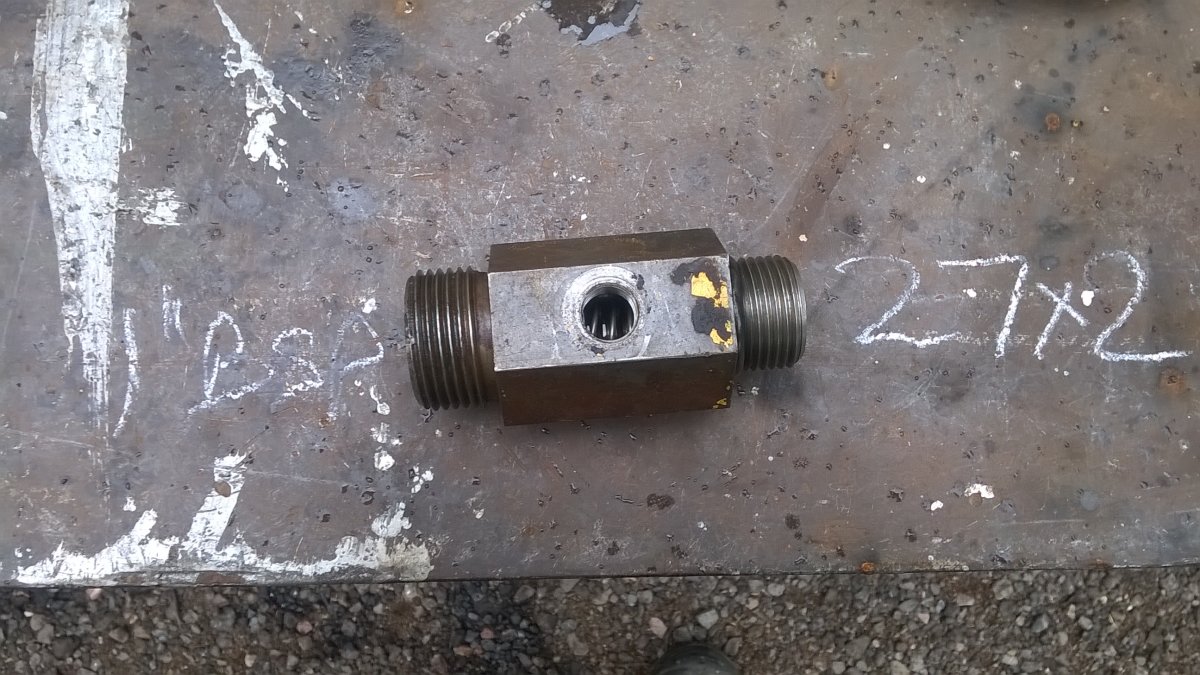

only issue is the 27 x 2mm on the one end .... gonna have to find an adaptor/boss to up it to 1"BSP . .... or buy a n other 1" BSP check valve like James's this un's even got a 1/4" BSP side port, could pop a gauge into if I wanted



[V8Druid]

forgot to say, I will measure what it cracks at and the pressure required for full open .... gave it a prod today and it's got a reasonable spring in it



[Gecko]

I rest my case…..

ok. I'd misunderstood what you were protecting with the valve.
I thought you were suggesting limiting the system pressure rather than protecting the cooler.



[Richard Hunton]

seems cheap enough



[Lancs Lad]

View attachment 35626seems cheap enough

Worth it for the druid experience



[Powerfab]

Pam I'll go mad if he brings home a third one. @V8Druid druid



[craig]

Pam I'll go mad if he brings home a third one. @V8Druid druid

Shall we have a wipe around, and buy it, and send it there just for the crack



[V8Druid]

View attachment 35626seems cheap enough

very cheap



[V8Druid]

Shall we have a wipe around, and buy it, and send it there just for the crack

do it, do it .. there's a good 5-700 quid in that ... hard to come by



[craig]

do it, do it .. there's a good 5-700 quid in that ... hard to come by

It would be handy for the annual PlantTalk grass cutting on a bank day



[JD450A]

It would be handy for the annual PlantTalk grass cutting on a bank day

Need a countax for that



[V8Druid]

Have you already got the spool block?
I’ve had to do both standard valve with taking a 1/4” sensing line from each service back to the pump with a mess of shuttle valves and the proper load sensing valve block with single load sens line back to pump. Always been kawasaki pumps up the valves have been danfoss.

I have sussed the pump Mike ...
Sauer Danfoss series 45 - G frame - PC (pressure controlled) ...
so no direct LS as such ... pump sort of does it all ...

had a lot of head scratching about the one port on the body, 'til I determined exactly what the pump was and found the drawing and schematic for it and discovered it was the case drain ..... then it was a 'case' of deciding WTF it was connected originally ?.....

this came in several large bits from Mog and the only clues as to what went where, were the ports and unions/hoses ...

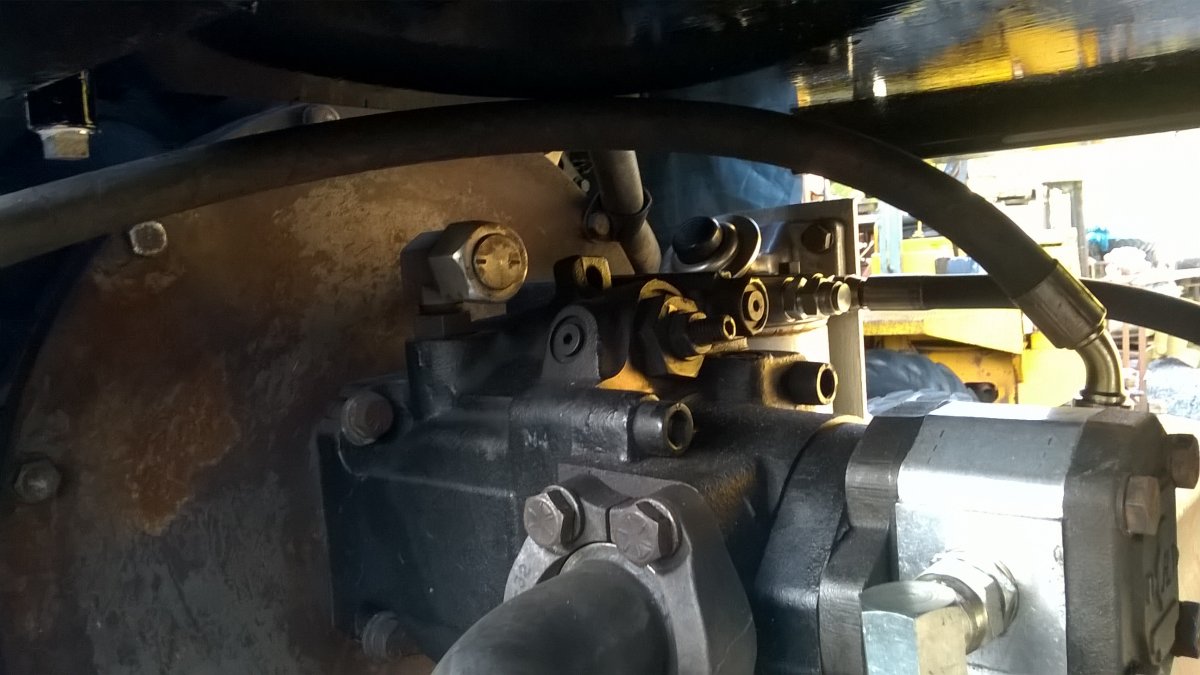

I'd taken plenty of pix for reference, as I dismembered it and as far as I can see (and it has me wondering a bit) is the case drain line was tee-ed into the feed line to the auxillary pump at the tank exit port. I'd presume this'd aid in drawing flow from the drain as the aux 'sucks' oil from the tank ...
there's a variety of BSP and metric fittings, so that too is a help in trying to suss things...
the line that was still connected at the tee was about the only union suitable to fit the case drain's adjustable metric elbow and was long enough to match the 2" bore main pump feed line from the tank. ...
any thoughts on the presumed suction effect likely??
that said the drain should in theory be happy enough straight to tank which is vented so should have no pressure build up in it, to act against the case drain, which apparently runs at 0.5bar normally and has a max of 2 bar on cold start up.

been 'lashing up' some pipe runs direct back to tank, with what I have available, for now, so I can suss a shopping trip for the right sized ones and several other fittings I'm in need of for the fuel lines ....
would like to be able to bang some oil into it, .. try to get the electricals sorted and hooked up and see if I have it all correct, whether I can get it turning over and maybe even start the motor to see how it runs.

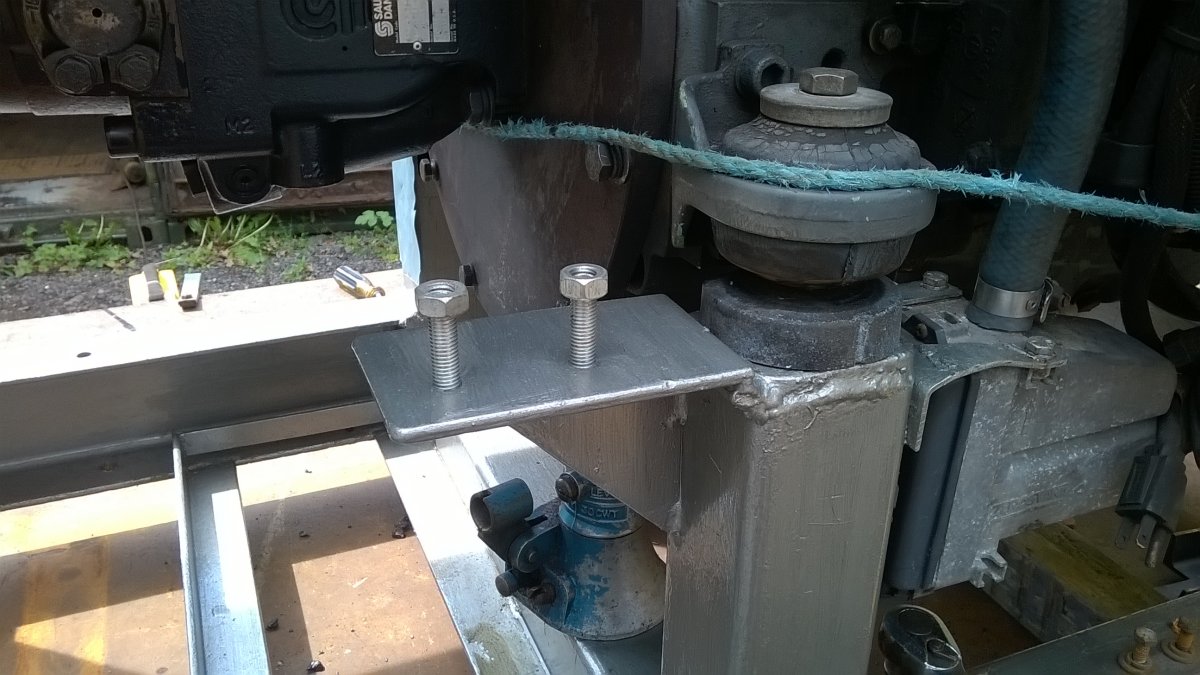

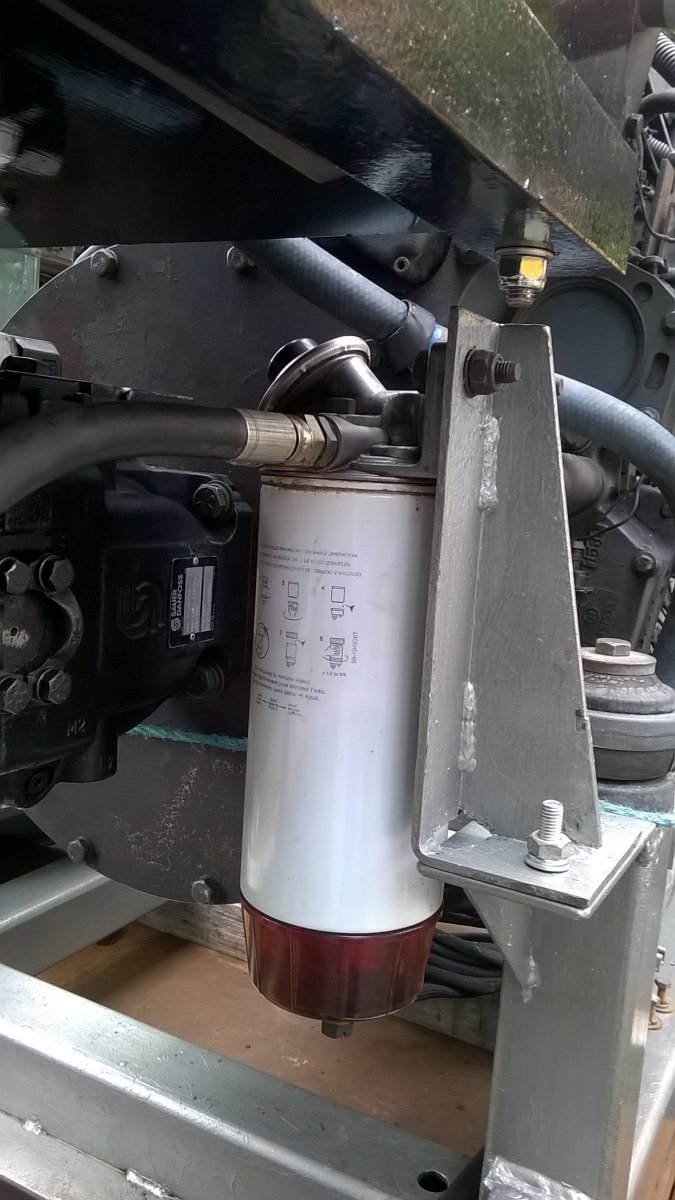

got the fuel filter / primer pump bracket sorted and in place the other day

and the unit ....

need some fittings to finish tidying the line from it to the pump ...

had to juggle it for now .... bloody orf fitting on the pump and not going to risk trying to get it out .. it's VFT .. easier to plumb to it

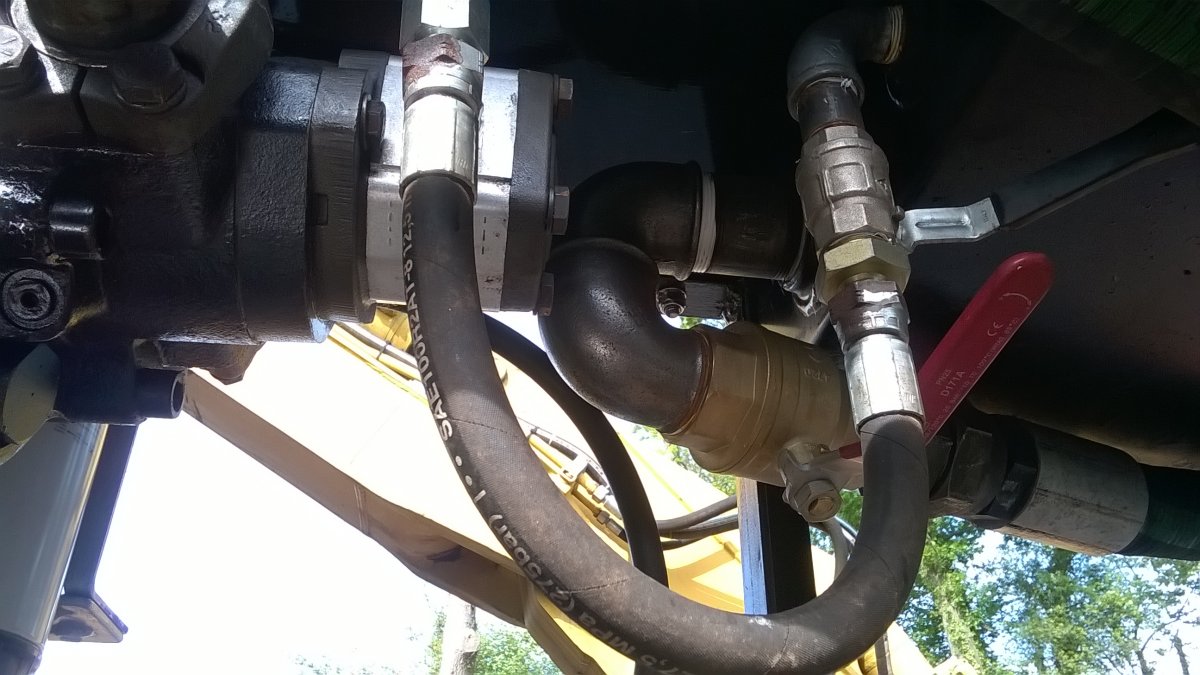

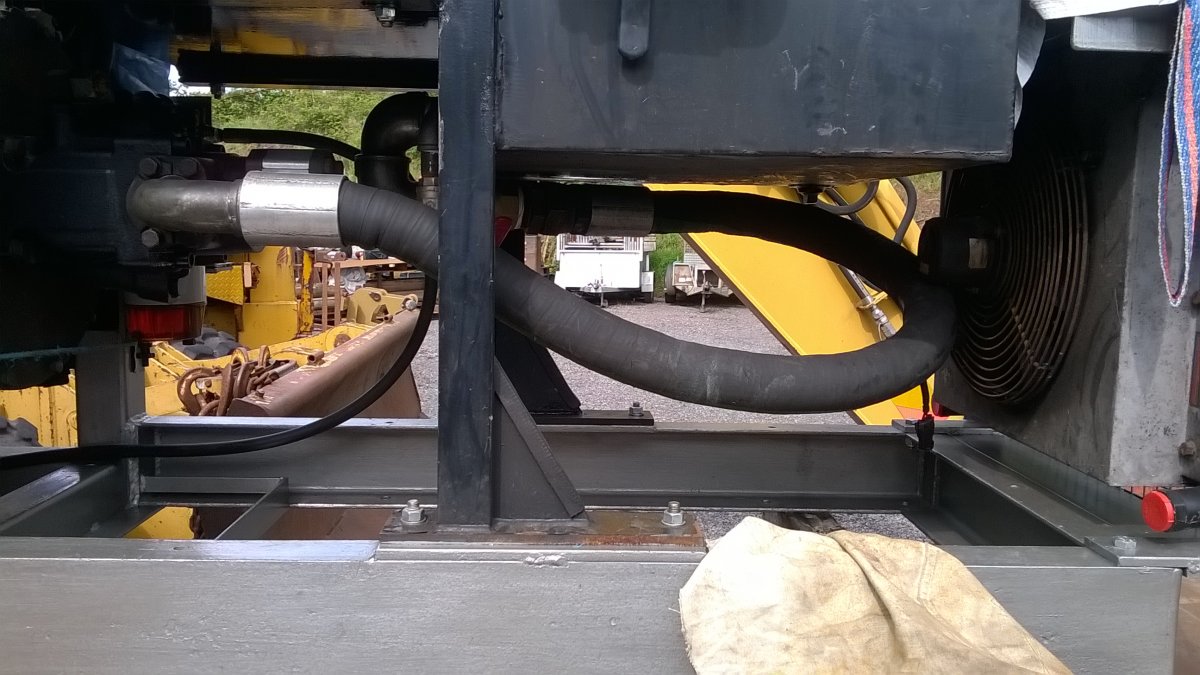

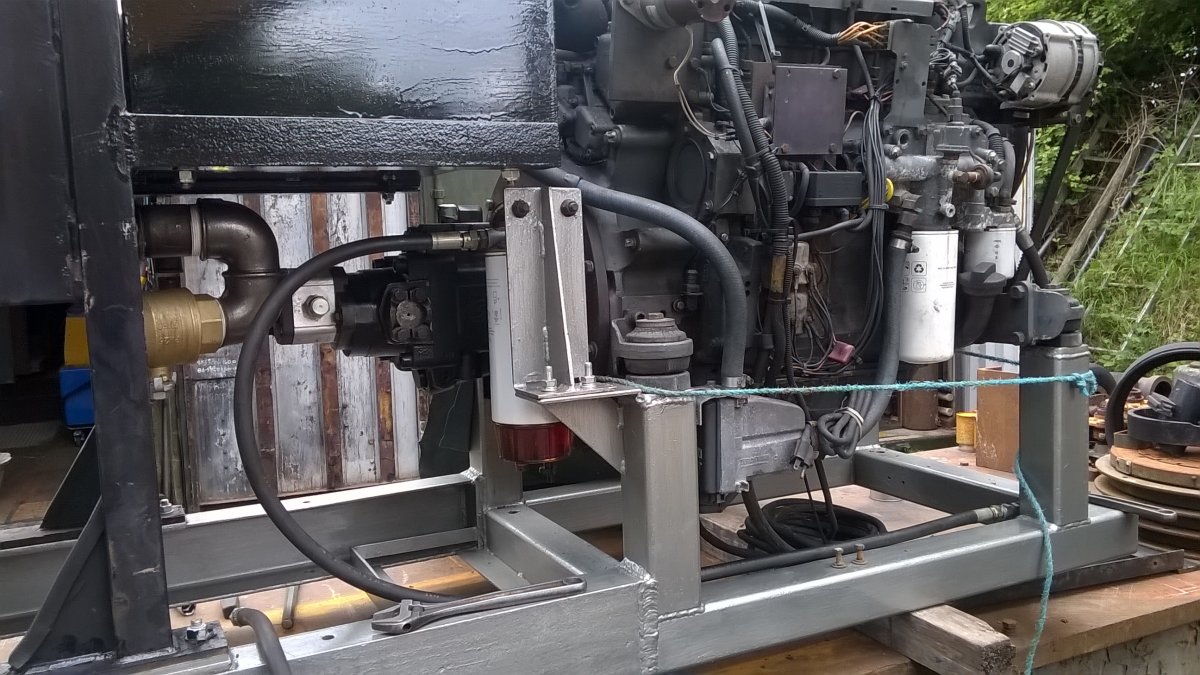

main feed took some wrestling into spot .....

and have since changed it too, to get a better run .. took some persuading ... pretty tight in there now

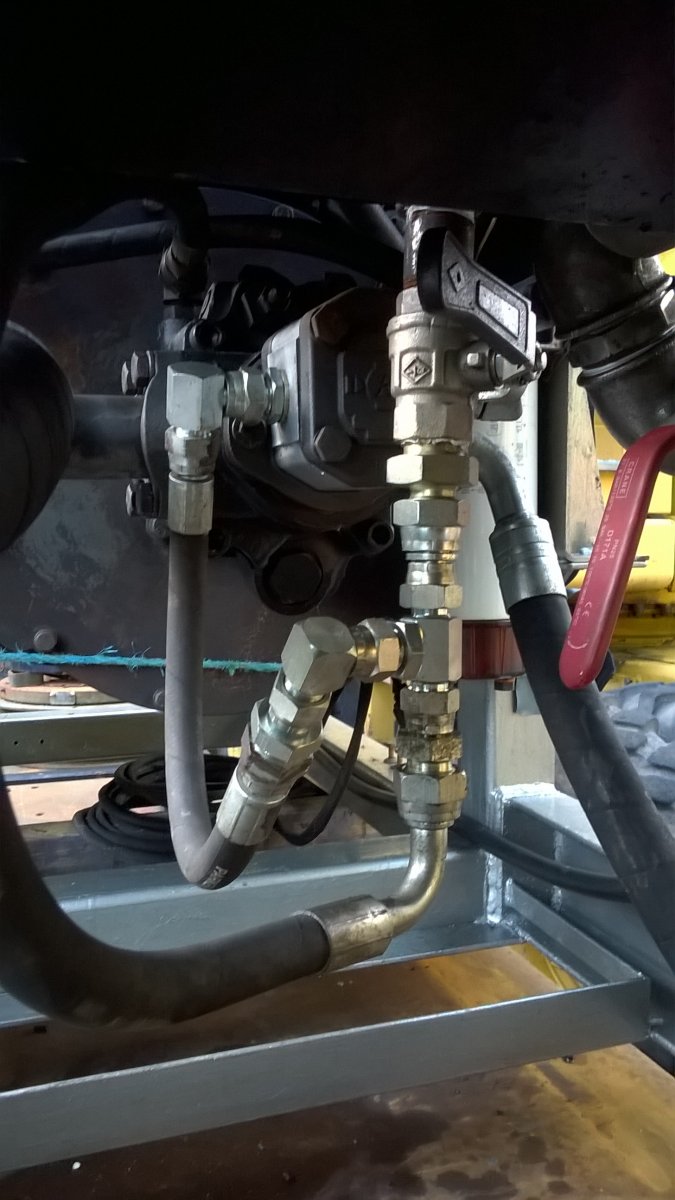

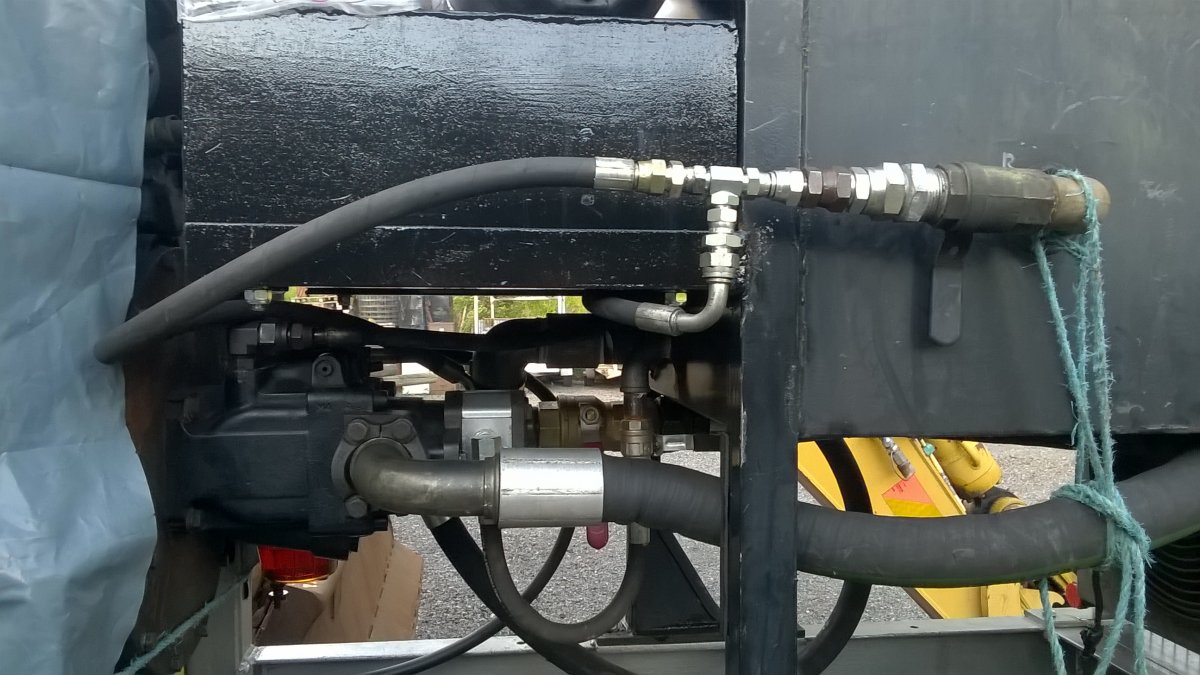

output lashed into tank ... need a 1" M/F 90 to replace all the jumble

the 2" feed wrestling was a 'big spanner day'

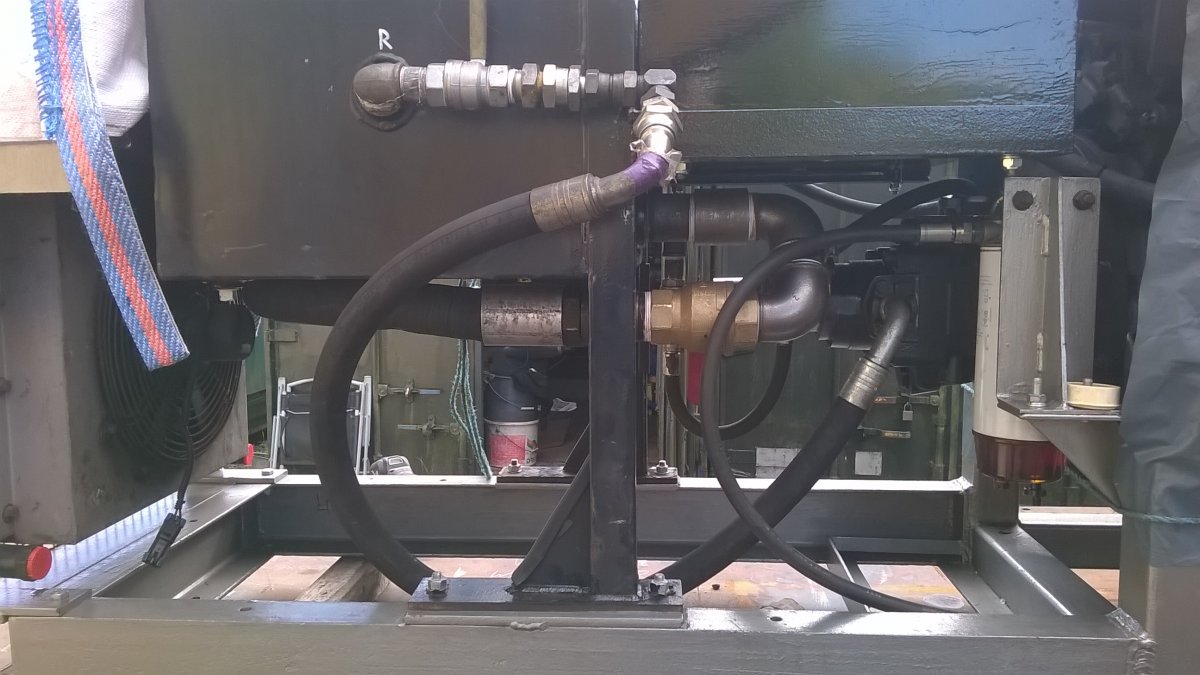

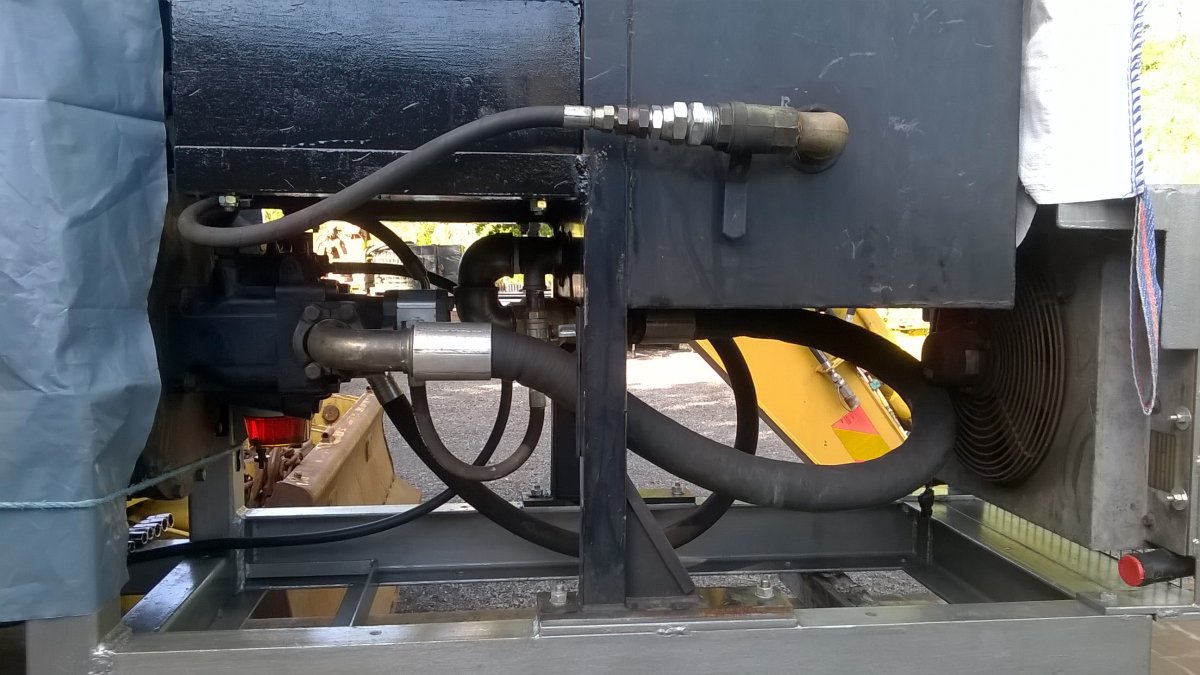

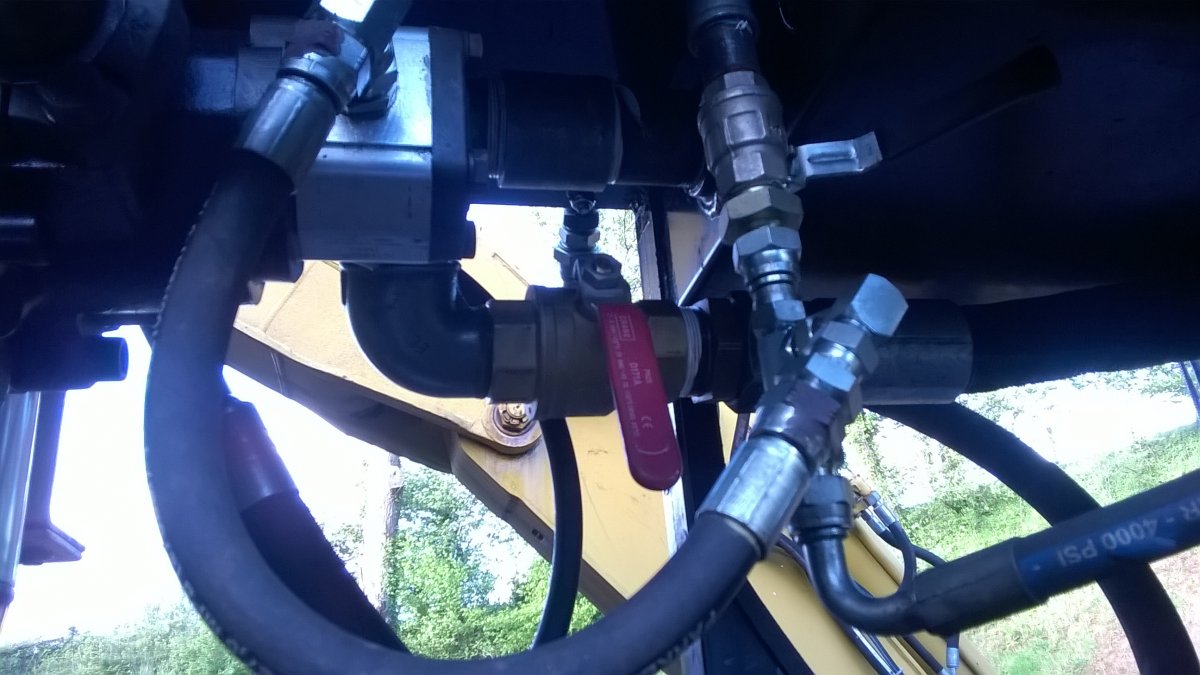

temp aux pump feed ...

and this is that case drain port ... 's a big un ... metric equiv of 1/2"

aux pump out, temp pipe to tank flying over it

and in ........
again need and 1"F - 1/2" M adapter to lose the jumble, or even a 1.5"M - 1/2" M ... but that said, depends whether the case drain is gonna end up here .. so'll need a M/M/F 1/2" tee too to again lose the jumble

if that case drain does need to go in the aux feed from tank .. this lot'd need some trimming down to a single F/M/M 1/2" tee

can never keep enough spare fittings in hand ... at least gives me an idea of HTF to achieve this for now

shopping list .... well one of 'em anyway .... few other bits required too

lorra head scratching

job for Monday after me hamster juice



[V8Druid]

getting ear ache off Pam to get on with her sister's gates ...... so needed to clear the bench

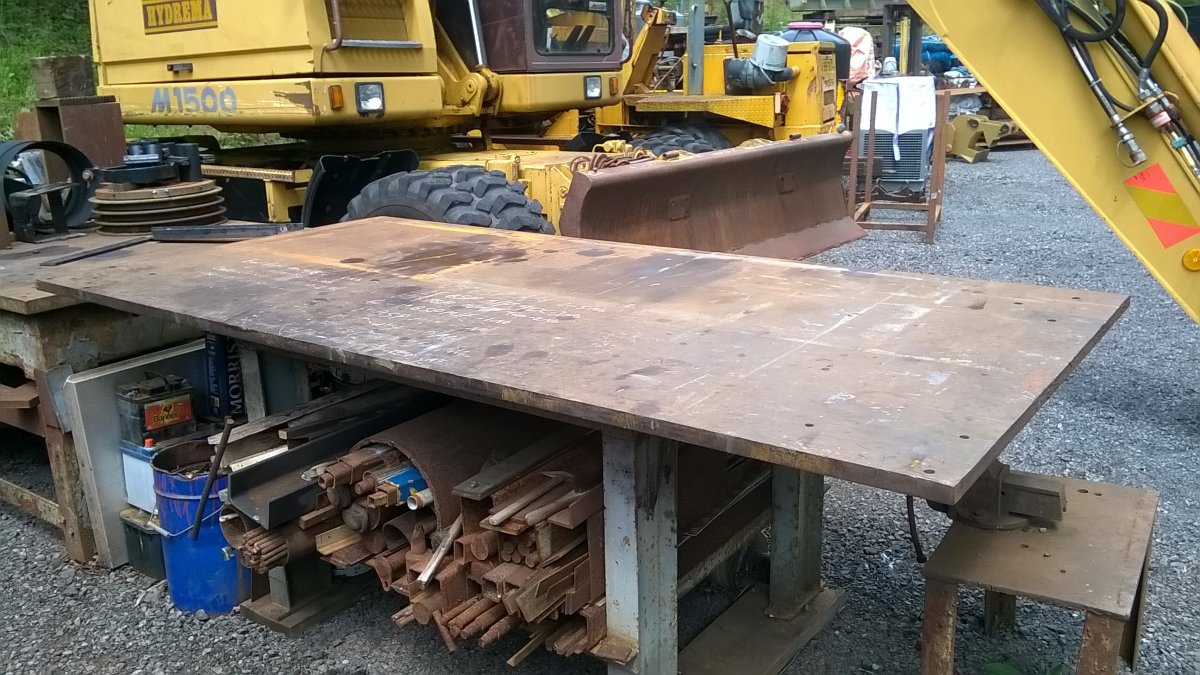

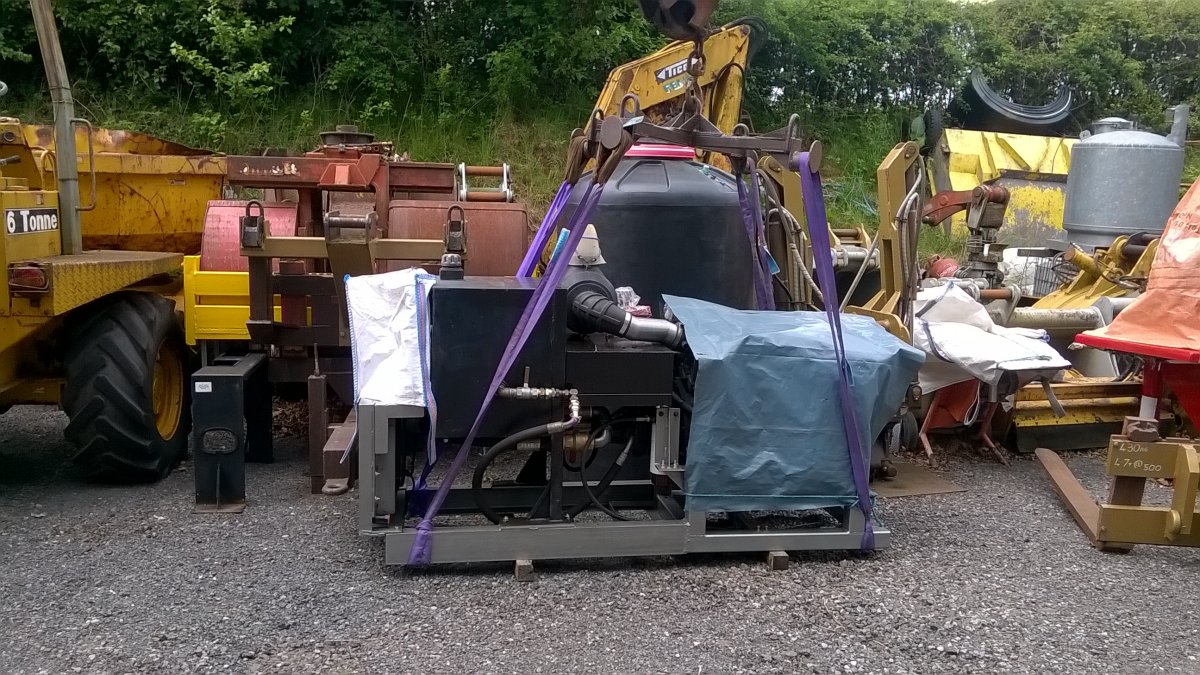

until I can get everything on board this, (oil, fuel, battery, etc., etc.) I can't establish a CoG to fit a lift point cradle, so had to improvise old skool .. and didn't want to squash/catch anything ... so

lifted it down and parked it out the way for a couple of days ...

not seen this in a while

and proceeded to try to make some sense of the BIL's dim.s

just the odd one or two details astray
so took a bit of CAD-ing (chalk aided designing)

the new ones're gonna be taller, heavier, in need of larger posts and generally different dim.s ... took a while to get ti all to tally, so's i could get a cut list together ....

I did suggest assembling it all on a beam, digging a trench across his drive entrance .. bit of conc. in the bottom, stand the whole assembly on a couple of level shims .. couple of fixings and flood the trench with concrete .
was well up for it 'til he remembered he's got a gas main, power cable and BT line in the way, in the drive ... so 's gonna have to be old skool post planting

pattern discussed months ago and needed to calc. the layouts ........... with Pam doing her best to 'assist'/make suggestions/be less than helpful, when trying to concentrate - not done this in a while

required design is in need of 16 of these ...

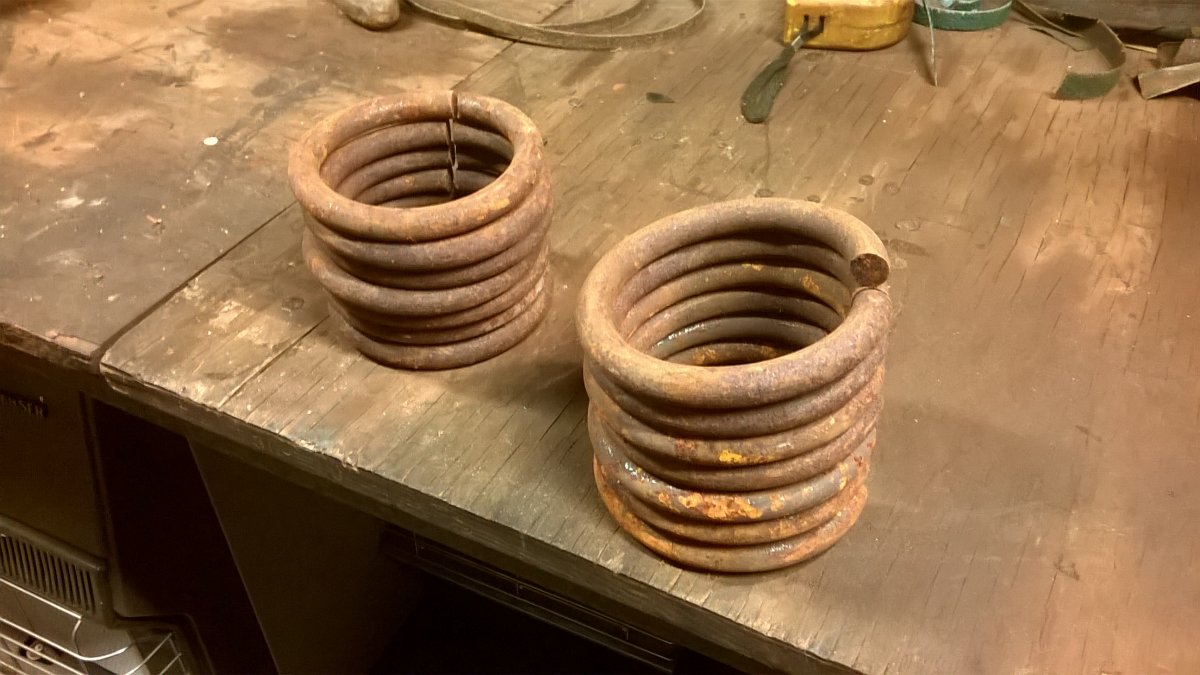

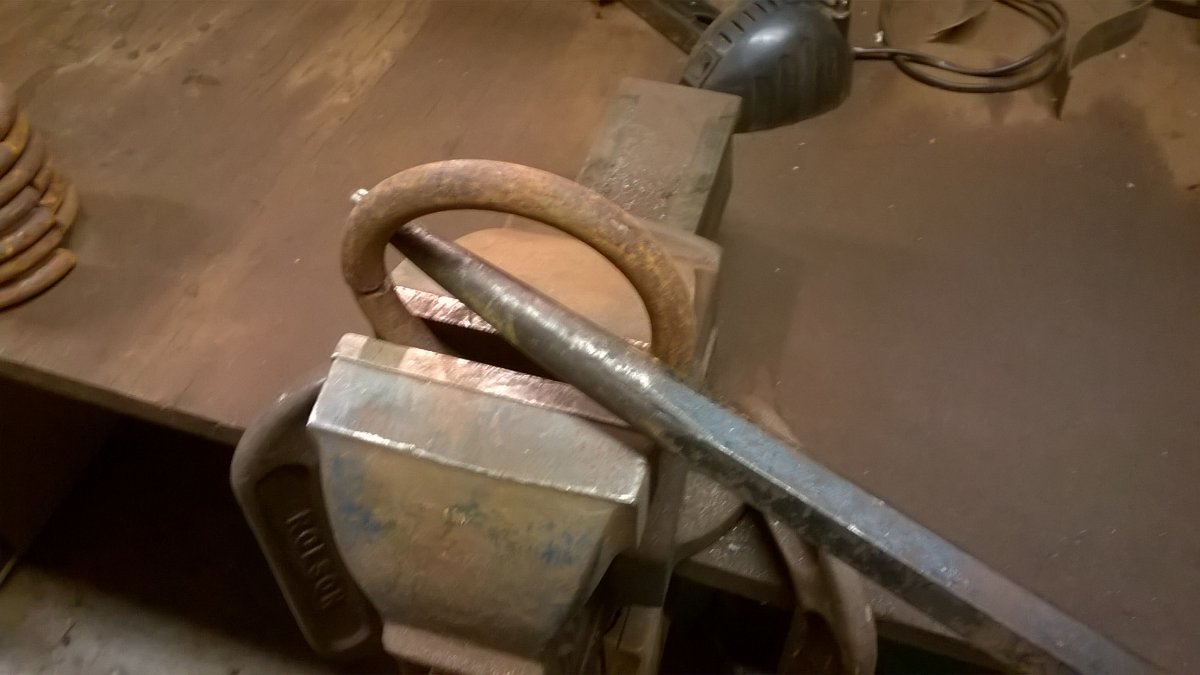

which all need 'tweaking' initially

used to roll them up on the old D, S & G lathe on a mandrel, 20ft lengths at a time and slit 'em into rings ... the Harrison ought to do an equally good job

coffee, sunshine and impending food time are a deadly combination on a comfy seat

's gonna be a busy one tomorrow ...... in theory, weather permitting .. but forecast looks good



[TiltyShaun]

At least I know where to come for some hydraulic fittings!!



[Lancs Lad]

It would be handy for the annual PlantTalk grass cutting on a bank day

I'm looking forward to the "bring your hydraulic attachments day"

getting ear ache off Pam to get on with her sister's gates ...... so needed to clear the bench

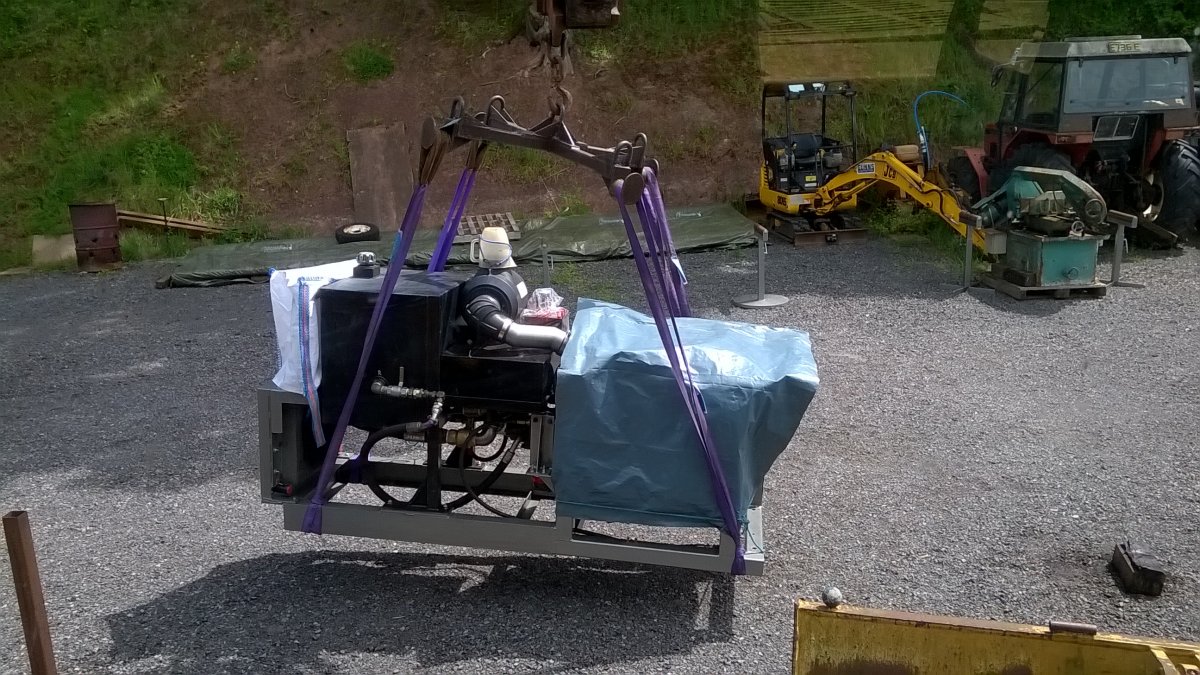

until I can get everything on board this, (oil, fuel, battery, etc., etc.) I can't establish a CoG to fit a lift point cradle, so had to improvise old skool .. and didn't want to squash/catch anything ... so View attachment 35679
lifted it down and parked it out the way for a couple of days ...
View attachment 35680
not seen this in a while

View attachment 35678

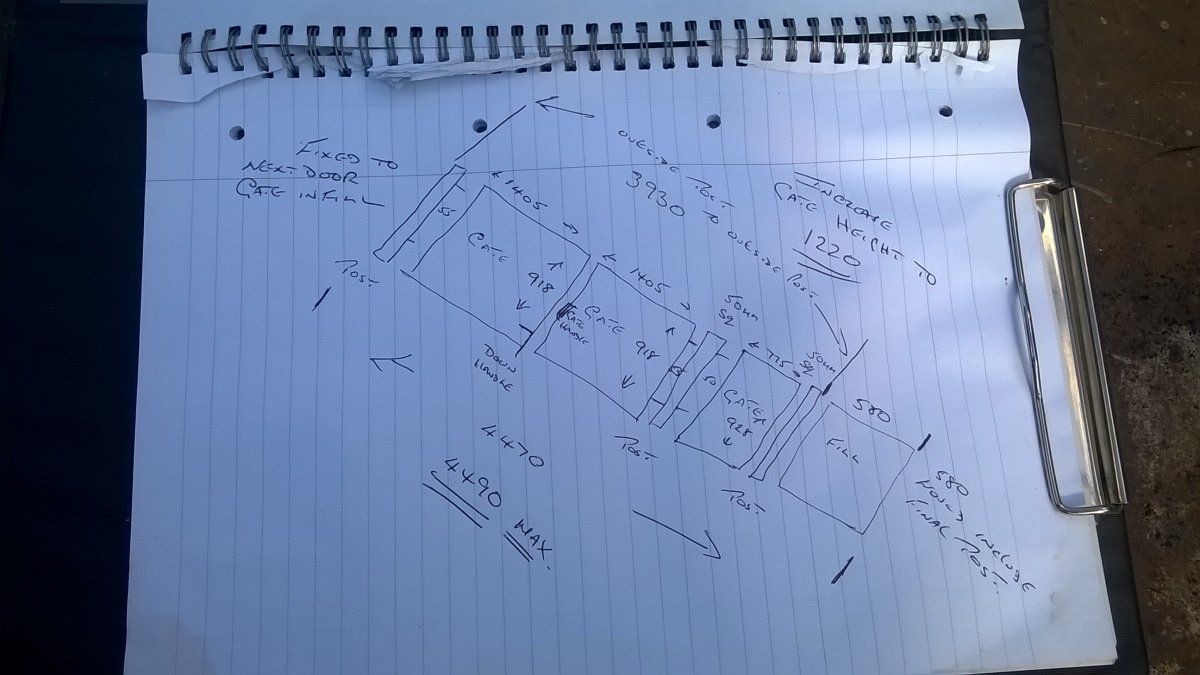

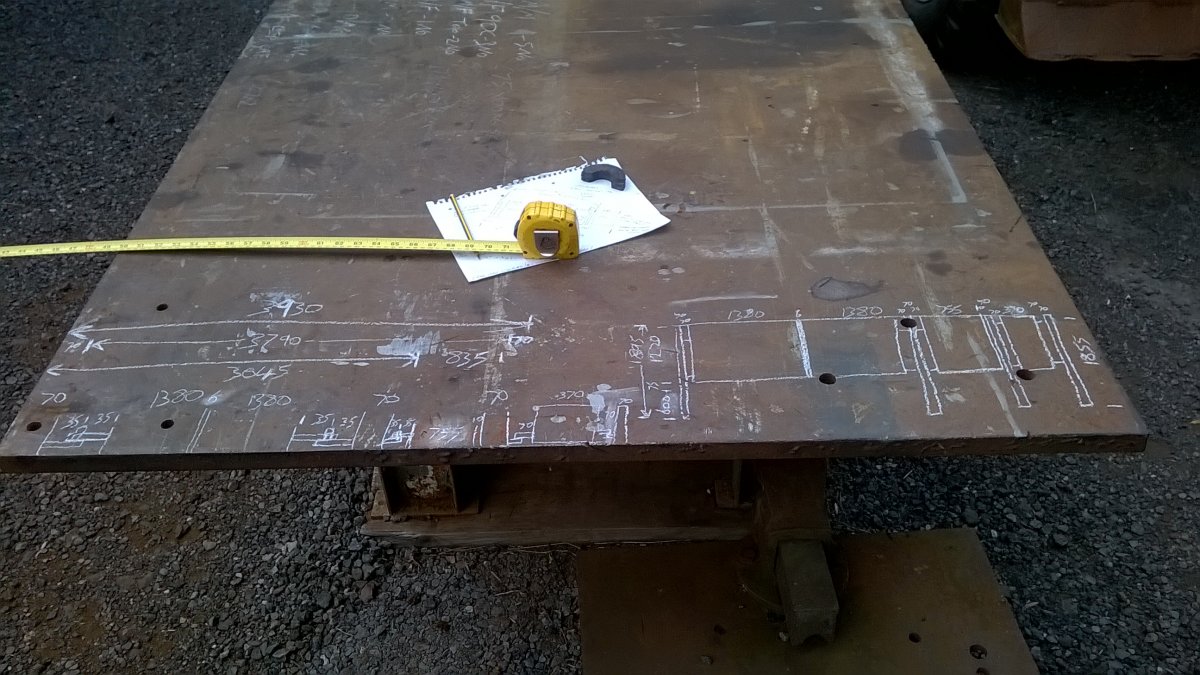

and proceeded to try to make some sense of the BIL's dim.s
View attachment 35681
just the odd one or two details astray

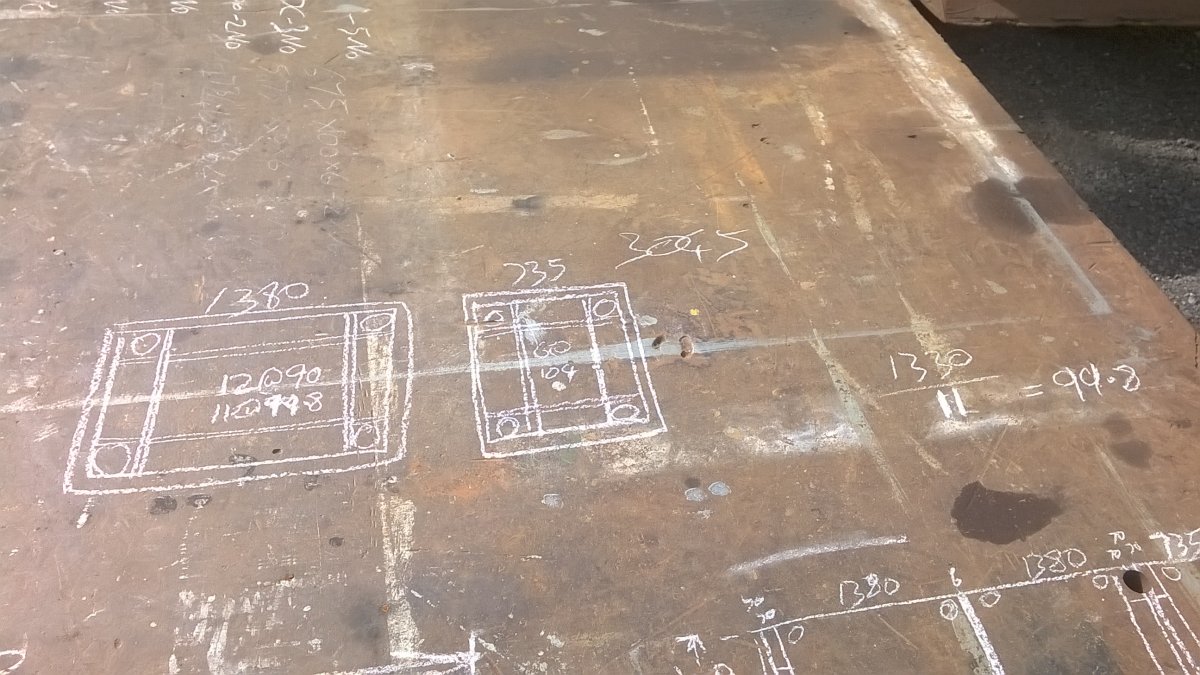

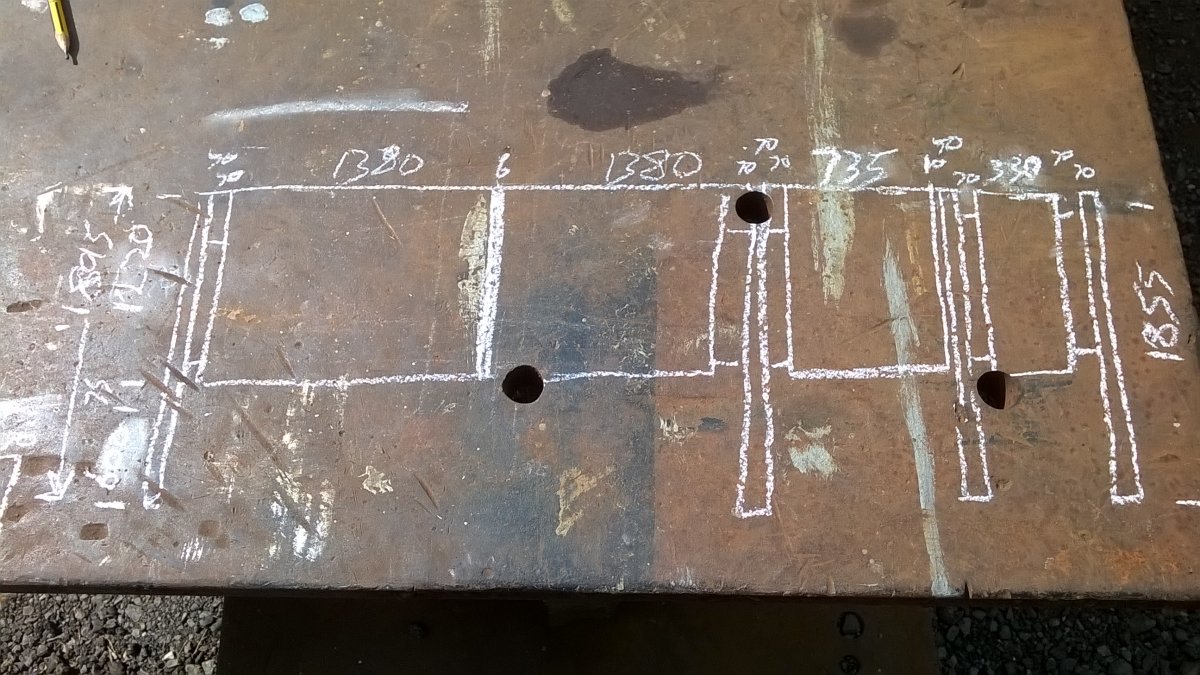

so took a bit of CAD-ing (chalk aided designing)
View attachment 35683View attachment 35685View attachment 35684

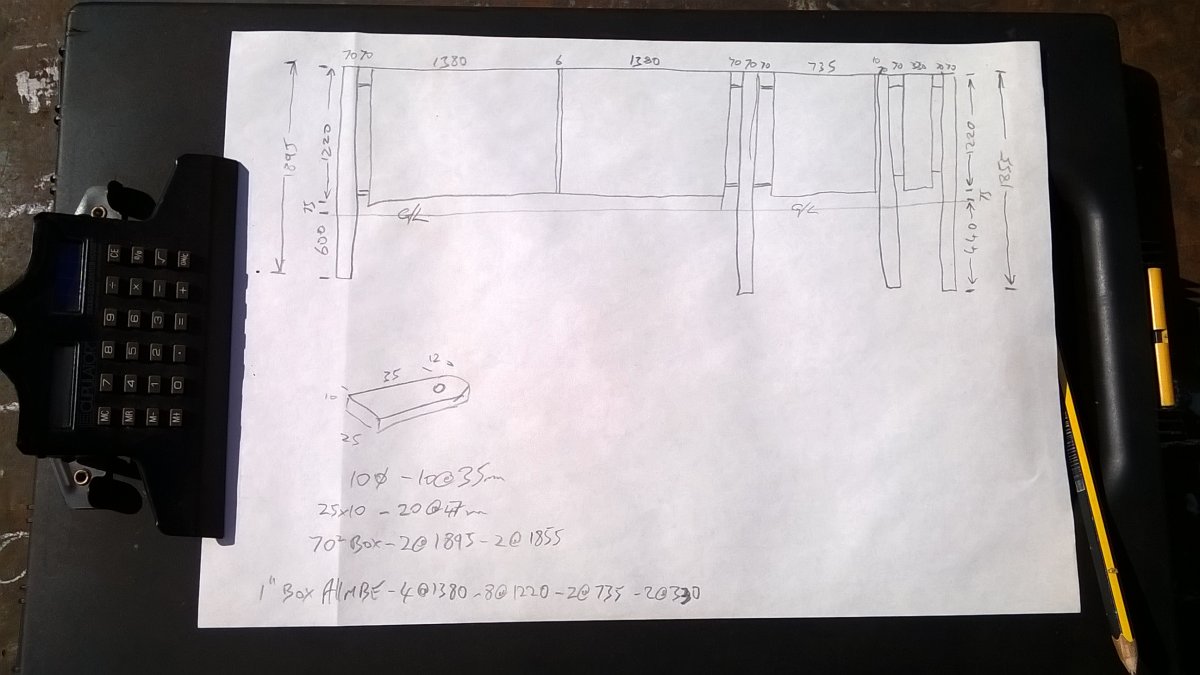

the new ones're gonna be taller, heavier, in need of larger posts and generally different dim.s ... took a while to get ti all to tally, so's i could get a cut list together ....View attachment 35686
I did suggest assembling it all on a beam, digging a trench across his drive entrance .. bit of conc. in the bottom, stand the whole assembly on a couple of level shims .. couple of fixings and flood the trench with concrete .
was well up for it 'til he remembered he's got a gas main, power cable and BT line in the way, in the drive ... so 's gonna have to be old skool post planting

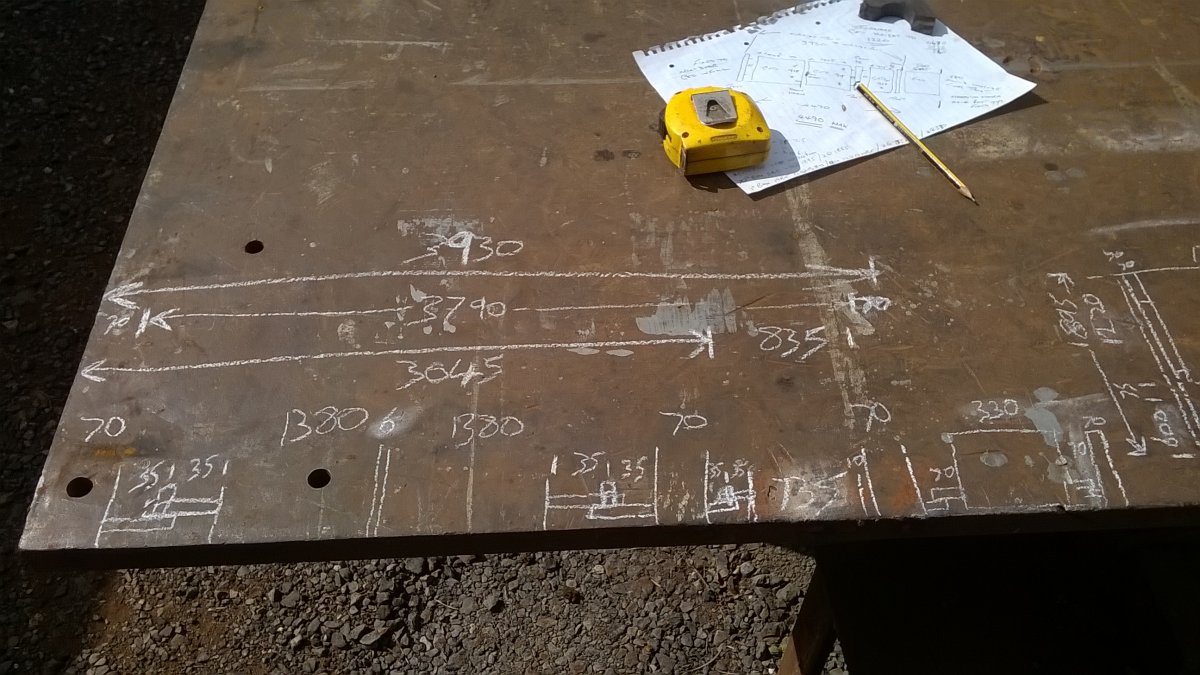

pattern discussed months ago and needed to calc. the layouts ........... with Pam doing her best to 'assist'/make suggestions/be less than helpful, when trying to concentrate - not done this in a while
View attachment 35690
required design is in need of 16 of these ... View attachment 35687
which all need 'tweaking' initially

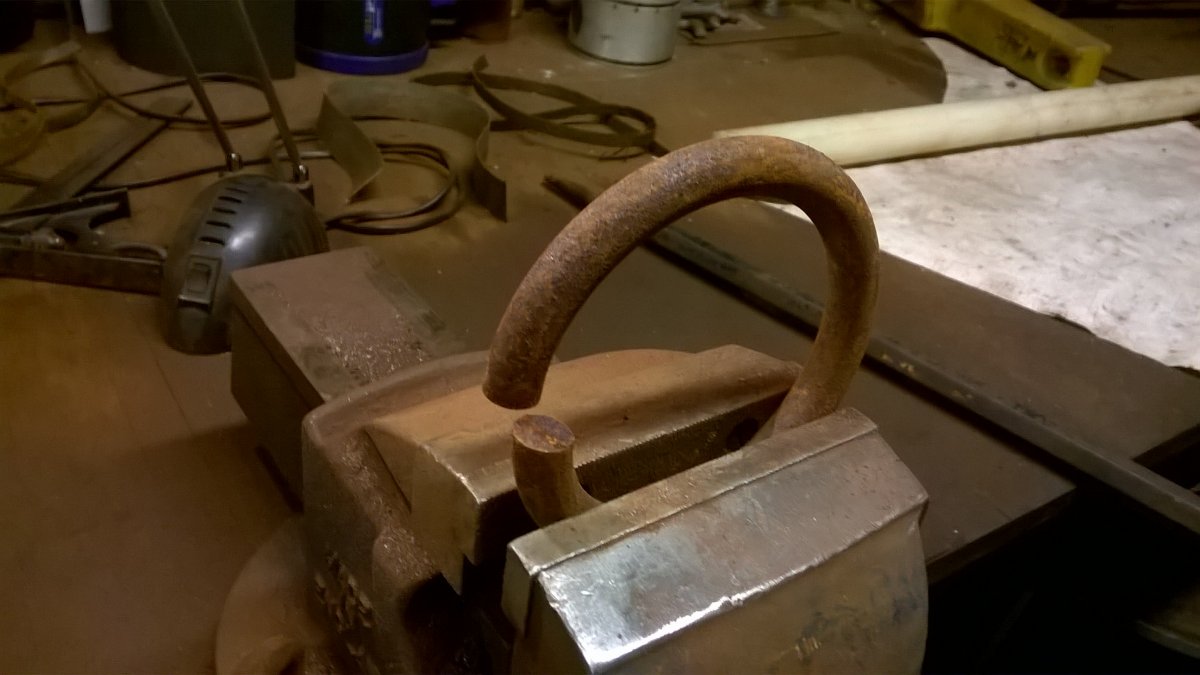

View attachment 35688View attachment 35689
used to roll them up on the old D, S & G lathe on a mandrel, 20ft lengths at a time and slit 'em into rings ... the Harrison ought to do an equally good job

coffee, sunshine and impending food time are a deadly combination on a comfy seat
View attachment 35691



's gonna be a busy one tomorrow ...... in theory, weather permitting .. but forecast looks good

That last pic will prove fruitfull I suspect



[Left hooker]

At least I know where to come for some hydraulic fittings!!

Thought pirteck had been



[Cyberprog]

Thought pirteck had been

More like had been had by pirtek. Mate of mine has just bought a full on hydraulic hose making system after getting stitched up by them.
