JCB 8014CTS (2015) Hydraulic fluid leak

[Deanofire]

Typical of France , the make while you wait consist of , " we dont have that fitting in stock , come back on Friday"
So we will have to see what happens then.
Thanks for all the help so far.



[Deanofire]

what's the other end attached to ?
a more general/wider field of view would help ... red thing might be the slew drive? but am not familiar with this later model ... you are going to get some oil loss - do you have any plugs to put in the open fitting ends?

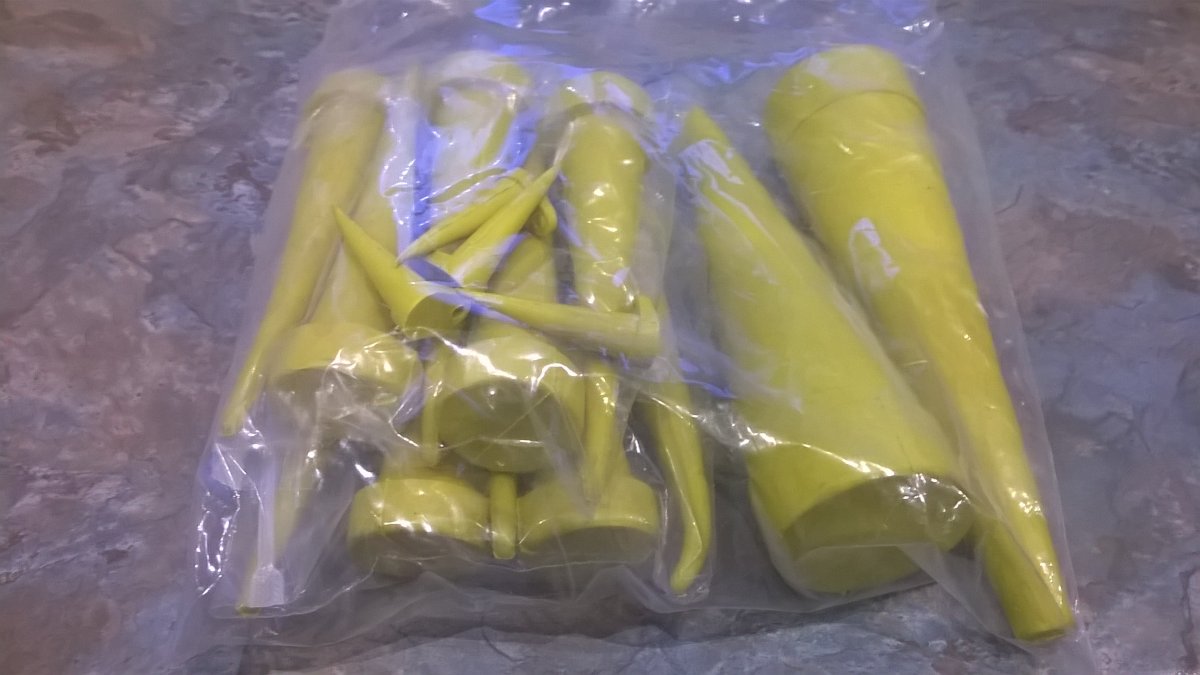

View attachment 53596 come in various sizes -
I've also found a cable shroud works well too

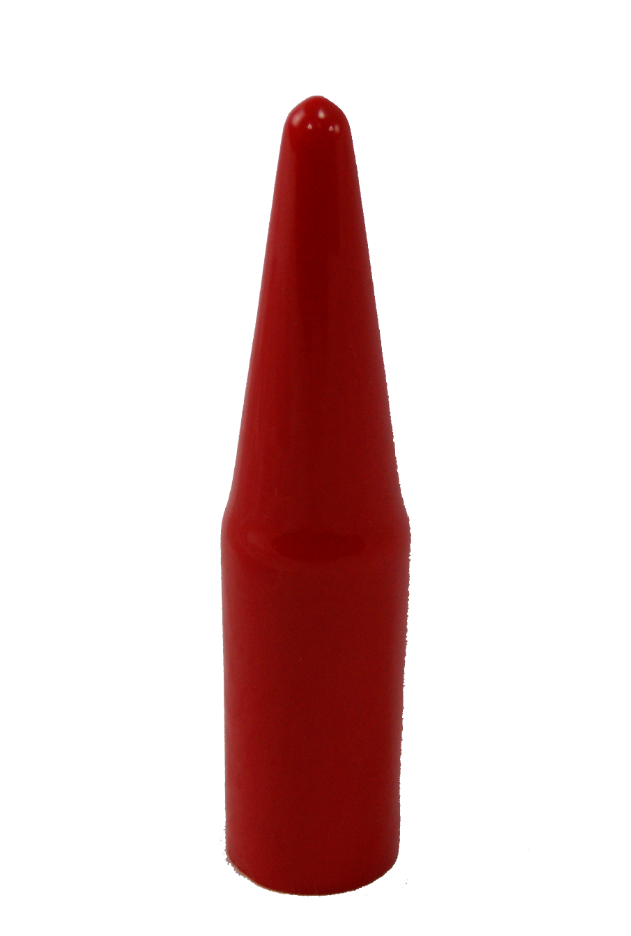

View attachment 53597

Pardon our interruption...

tightness depends on the type of union ... tapered cone = reasonably tight, O ring seat/face seal doesn't need to be over dogged - ditto metric ends don't need to be too tight either ... hard to describe to an unfamiliar 'hand', just how tight, other than nip them up and then give it a little more, with a good nip down for the tapered cone type

Thanks i managed to get a foam ear plug in there , seems to have stopped it for the moment at least. i will be getting some of them plugs tho for the future



[Deanofire]

If you can't find a local supplier, this crowd is easy to deal with:
hcparts.pl
For smaller diameter hoses, foam ear plugs will work to block the hose.
Looks like the hose will always rub on the chassis - a spiral wrap or similar protection may help to save the next hose,

Thanks am going to put some sheathing round it



[Deanofire]

looks like metric to me from the pix ... you shouldn't have much trouble getting that made up other than the 30 deg swept union ... might have to have a swept adapter on the end of a hose with two straights on it, but hopefully your hose place should have swept fittings .. plenty of space to fit a separate adapter though ..... be interesting to know what that cost in La Belle France ? ... what part are you calling home?

Wi ll let you know the cost when i get it on Friday, he said about 40 euros,
I am right down in the south on the med, on the french /spanish border, close to Perpignan.



[Mick-the-fitter]

That’s ORFS is it not? There would be an O ring on the fitting!



[Deanofire]

That’s ORFS is it not? There would be an O ring on the fitting!

Do you mean the o ring would still be in the fitting that it screws into ? And do you mean the smaller or larger fitting ?



[Smiffy]

Wi ll let you know the cost when i get it on Friday, he said about 40 euros,
I am right down in the south on the med, on the french /spanish border, close to Perpignan.

We had our honeymoon around there think it was thuir. My dad had a house further inland when I was younger near staint guadans.



[Deanofire]

We had our honeymoon around there think it was thuir. My dad had a house further inland when I was younger near staint guadans.

Thuir is about 25 mins away from me. Small world



[jd6820]

Do you mean the o ring would still be in the fitting that it screws into ? And do you mean the smaller or larger fitting ?

Yes, it's definately ORFS (O Ring Face Seal) - the O ring should still be in the male fittings left on the machine, looks like the pipe is feeding the rotary joint?



[jd6820]

Part 6

Edit: actually return circuit hence leaking when parked, links rotary joint to slew motor leakoffs I reckon.



[Deanofire]

Yes, it's definately ORFS (O Ring Face Seal) - the O ring should still be in the male fittings left on the machine, looks like the pipe is feeding the rotary joint?

Thanks. I think I saw it. Will check



[V8Druid]

Yes, it's definately ORFS (O Ring Face Seal) - the O ring should still be in the male fittings left on the machine, looks like the pipe is feeding the rotary joint?

I initially thought rotary, but seems too far forward ... and looks more like the slew drive ?



[V8Druid]

Wi ll let you know the cost when i get it on Friday, he said about 40 euros,
I am right down in the south on the med, on the french /spanish border, close to Perpignan.

lovely part of the world ..
spent a week in that area and have 'done' the entire French Med coast, on two wheels in the '80s, from Banyuls Sur Mer to Menton ..... and the other way .... great biking roads
2009 since I was last in that part of the world

day out in the Gorge D'Heric up in the mountains behind Beziers



[Deanofire]

lovely part of the world ..
spent a week in that area and have 'done' the entire French Med coast, on two wheels in the '80s, from Banyuls Sur Mer to Menton ..... and the other way .... great biking roads
2009 since I was last in that part of the world

day out in the Gorge D'Heric up in the mountains behind Beziers
View attachment 53641

Very cool mate, biker myself, fantastic roads here for it, i am up int the pyrenees mountains right on the border. About time you had another run down this way ?
You can pop in for a Tea or a beer ?



[doobin]

Very cool mate, biker myself, fantastic roads here for it, i am up int the pyrenees mountains right on the border. About time you had another run down this way ?
You can pop in for a Tea or a beer ?

I'll join you on the way @V8Druid !



[jd6820]

I initially thought rotary, but seems too far forward ... and looks more like the slew drive ?

You are correct, on closer inspection it appears to be the leakoff for slew drive and passes via the rotary joint on its way to the tank.



[Deanofire]

Thought the same as you but if you look closely it is the rotary joint, pictures aren't the clearest.

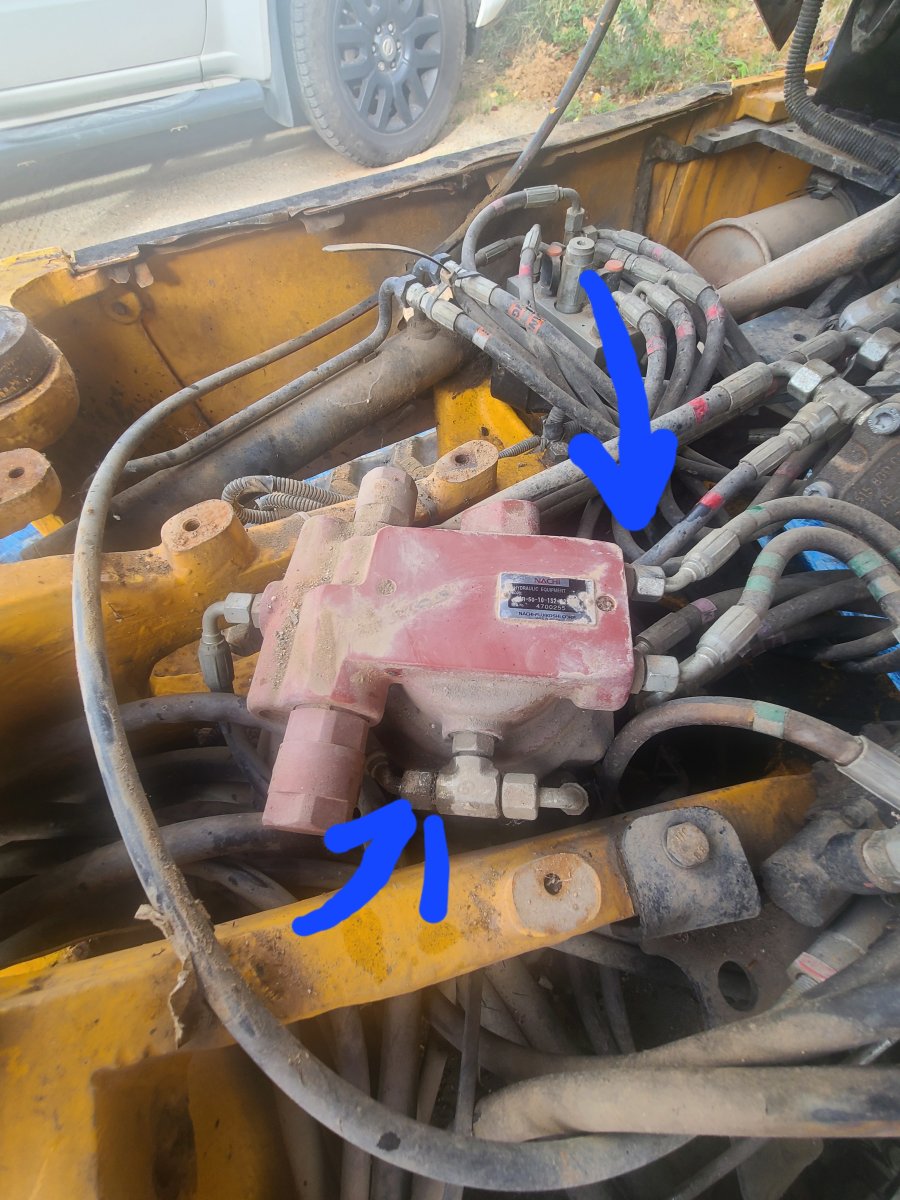

Hi, the pipe comes from a round unit just behind the large red unit, it has 4 pipes coming out of the top and another 3 or 4 on the sides, it then comes round to the front of the large red unit and fixes where indicated with the arrow. Hope this is clearer ?
Thanks
Dean



[jd6820]

Hi, the pipe comes from a round unit just behind the large red unit, it has 4 pipes coming out of the top and another 3 or 4 on the sides, it then comes round to the front of the large red unit and fixes where indicated with the arrow. Hope this is clearer ?
Thanks
Dean

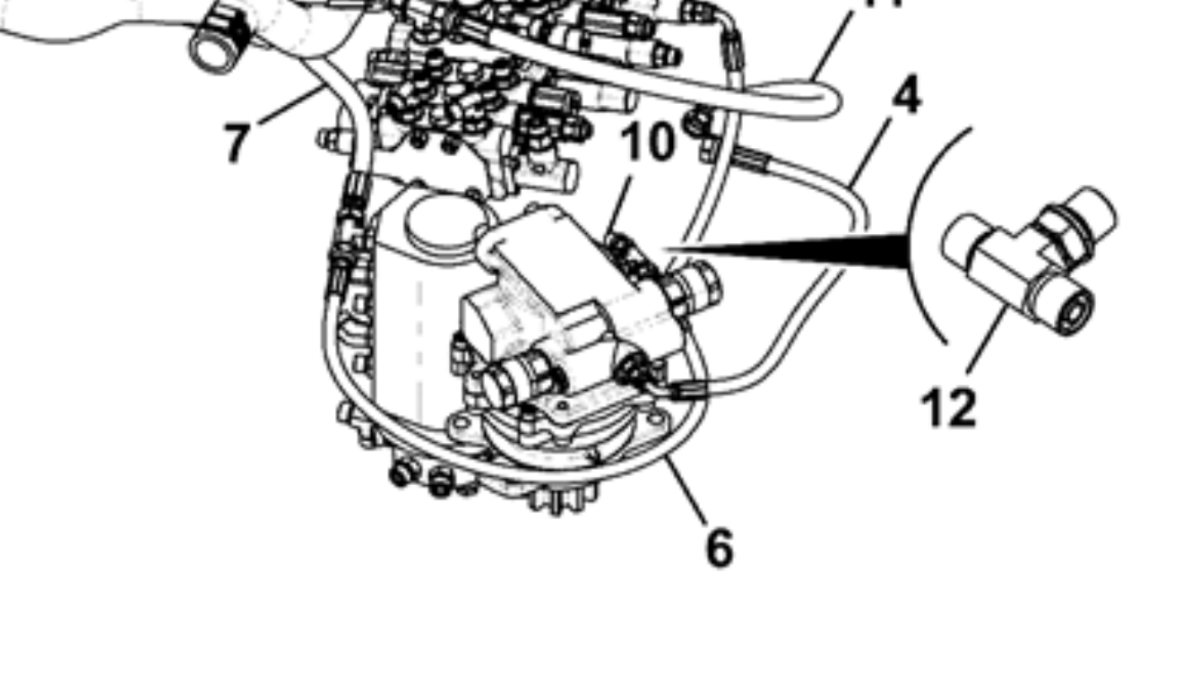

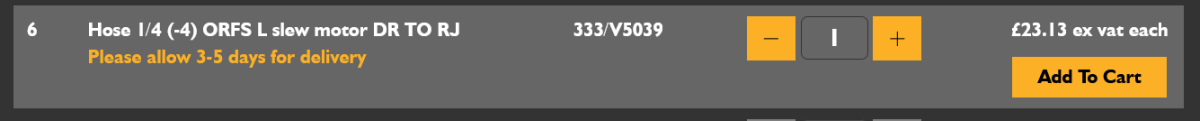

Just altered my comment a second ago. Also updated my last post with a different diagram, hose part number and price...



[Deanofire]

Just altered my comment a second ago. Also updated my last post with a different diagram, hose part number and price...

i think its the one that comes out of no. 12 ? 6 looks right but at the other end , it goes into its own fitting not a "T" fitting like the diagram.



[Monkeybusiness]

I'll join you on the way @V8Druid !

Can I come too?!
