We need a crane thread ....... so here it is

[Lancs Lad]

That must have been a butt clencher

A little bit warm-up on our next year plan😏 Built to perform | Langxia Li

A little bit warm-up on our next year plan😏 Built to perform

www.linkedin.com



[V8Druid]

That must have been a butt clencher

A little bit warm-up on our next year plan😏 Built to perform | Langxia Li

A little bit warm-up on our next year plan😏 Built to perform

www.linkedin.com

'bout as steep as the top of our drive ... no break over point on that though



[pettsy]

TikTok - Make Your Day



[Giles]

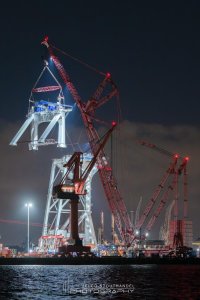

Major update for Van Oord's heavy-lift installation vessel, Svanen!

In an impressive display on the quayside of Mammoet today, the PTC210-DS executed a major upgrade for the Svanen.

A massive A-Frame was lifted onto the existing structure, propelling the vessel to new heights – literally! This enhancement equips the Svanen to seamlessly install new generation monopile foundations at sea. The structure is now towering at an impressive height of 125 meters.

For this operation, the PTC 210-DS was configured with a 105-meter main boom and a 66-meter luffing jib, handling a staggering combined weight exceeding 1000 tonnes!

#VanOord #Svanen #HeavyLift #EngineeringMarvel #Mammoet #PTC210DS #Schiedam



[6feetdown]

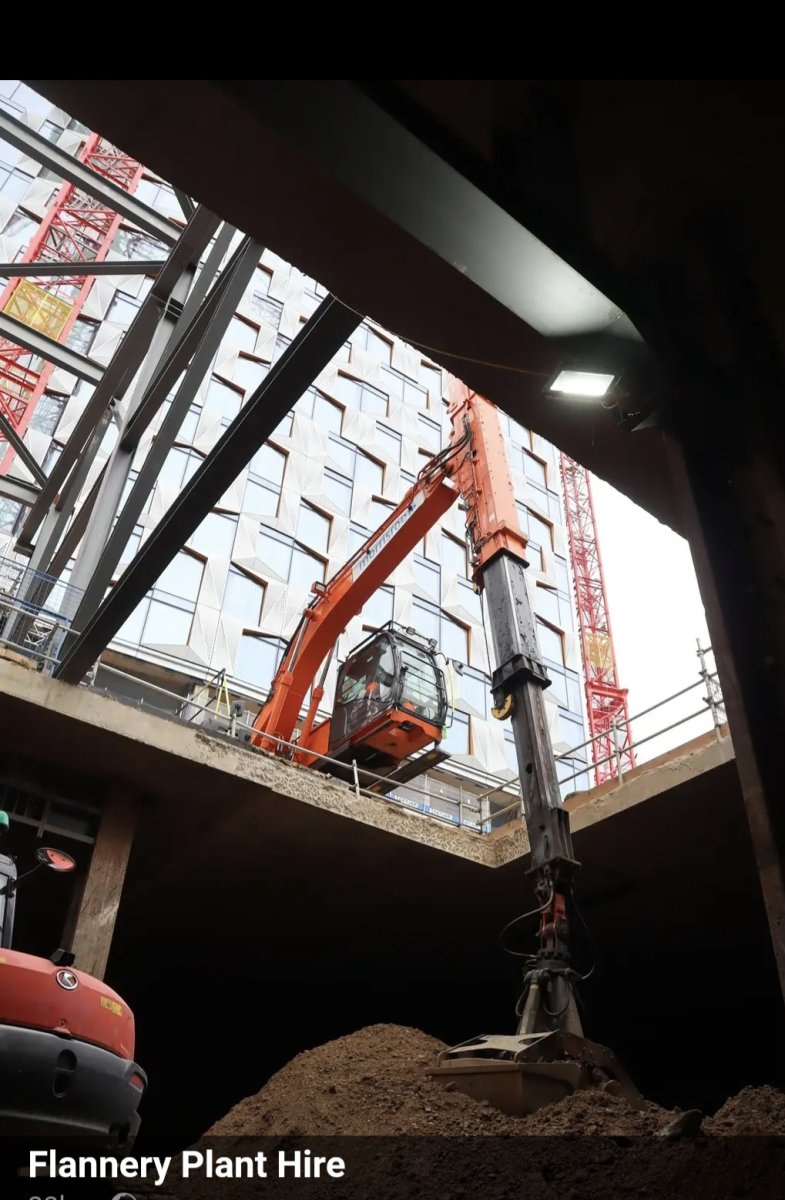

Not a crane but didn't know where to put it



[V8Druid]

Not a crane but didn't know where to put it

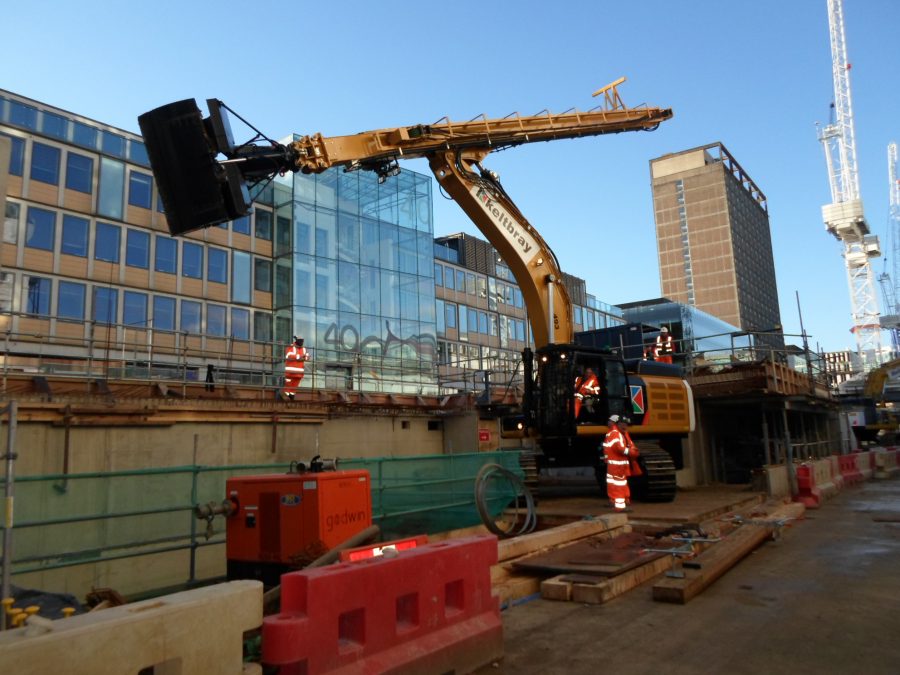

IIRC Kocurek were building these .... discussed at length on the old CEF at one time

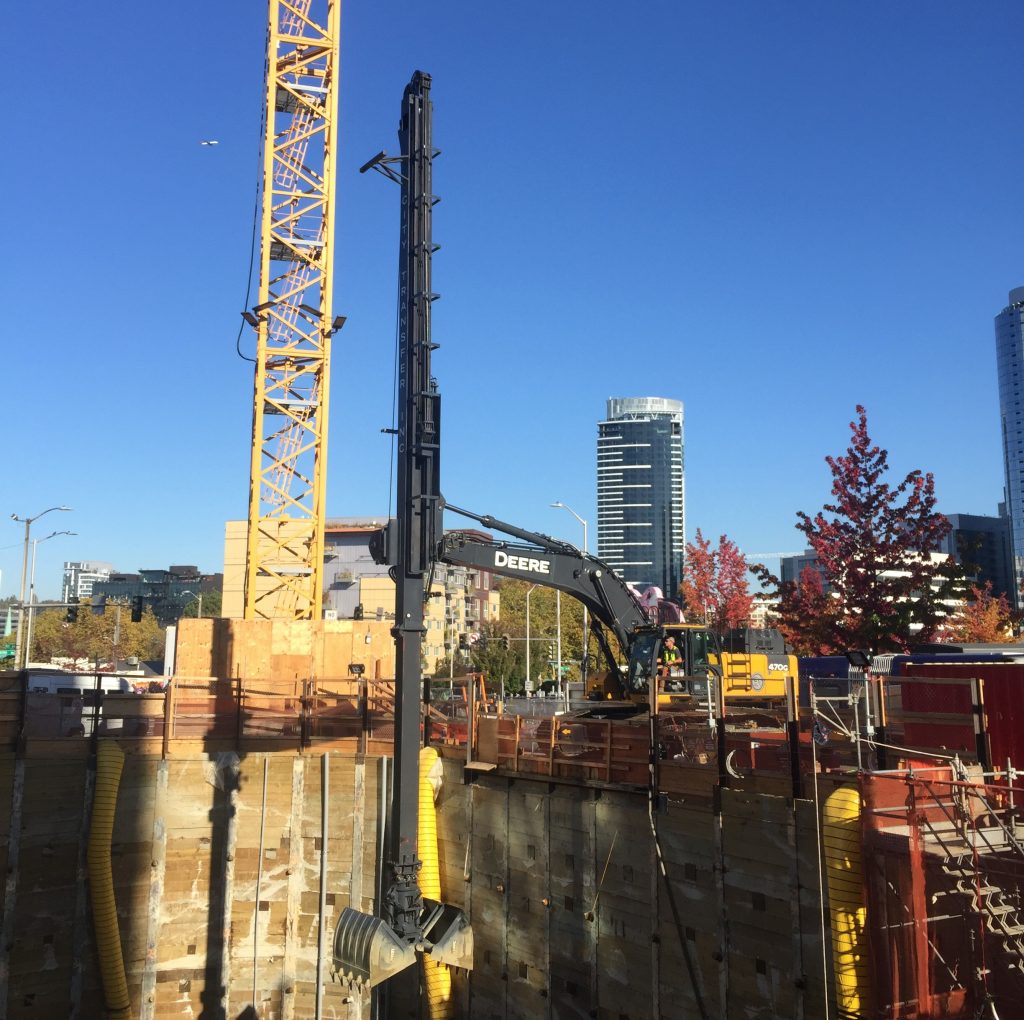

Teledipper Archives | Kocurek - Kocurek Excavators Ltd - Industry leaders in design and manufacture of bespoke excavator equipment and modifications

kocurek.com

Teledipper | Kocurek - Kocurek Excavators Ltd - Industry leaders in design and manufacture of bespoke excavator equipment and modifications

A simple yet effective concept the Kocurek Teledipper has been utilised on demanding projects around the globe. With continual design and development to ensure it can constantly meet customers’ demands has seen it placed on high profile jobs on tight deadlines. Designed for fast shaft sinking up...

kocurek.com



[Bucket on wheels]

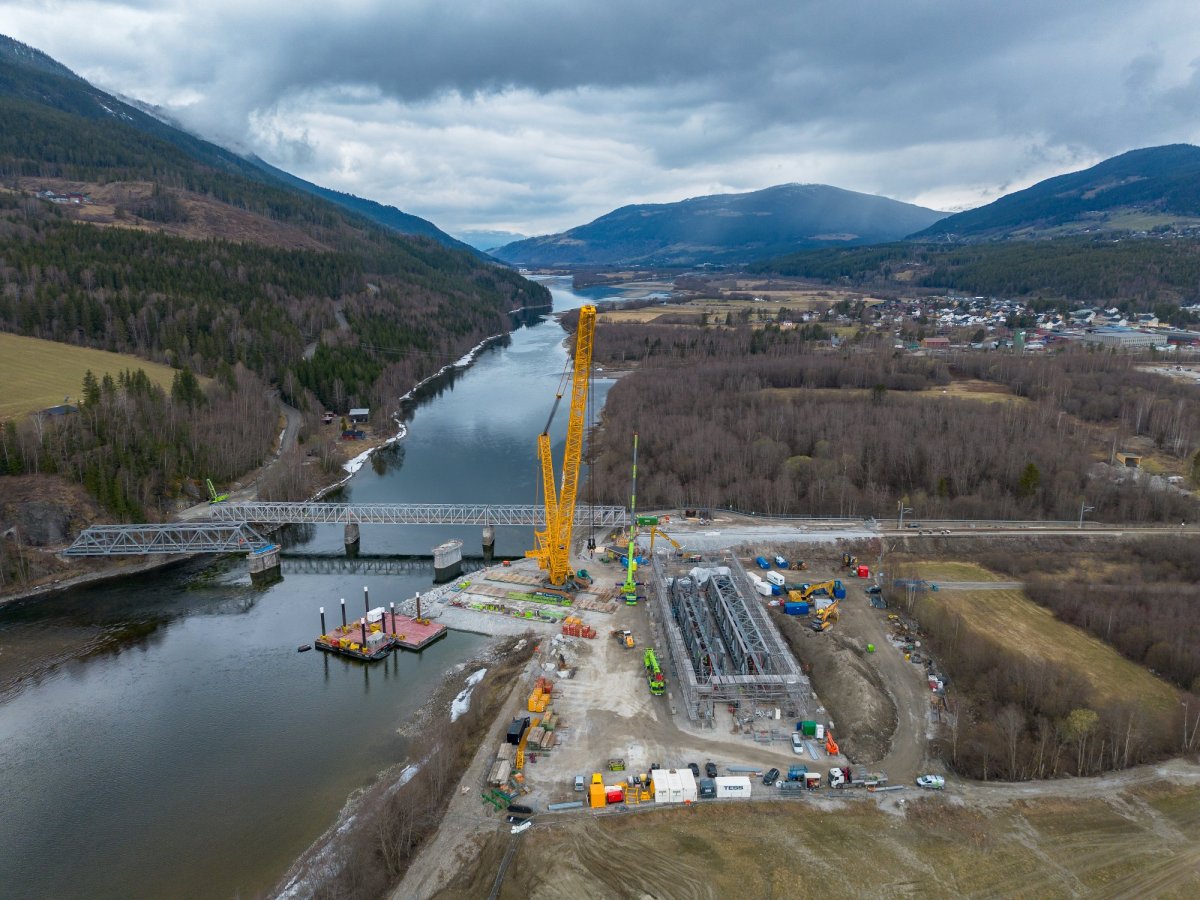

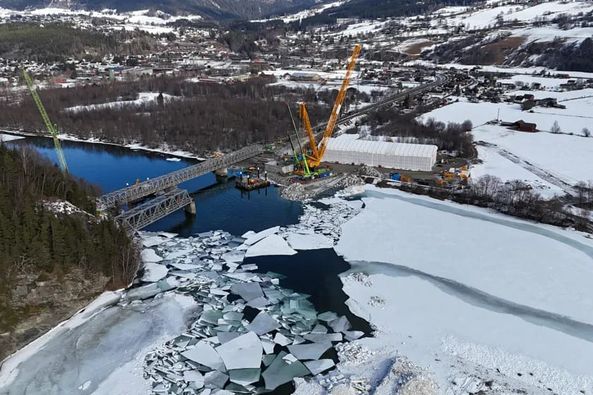

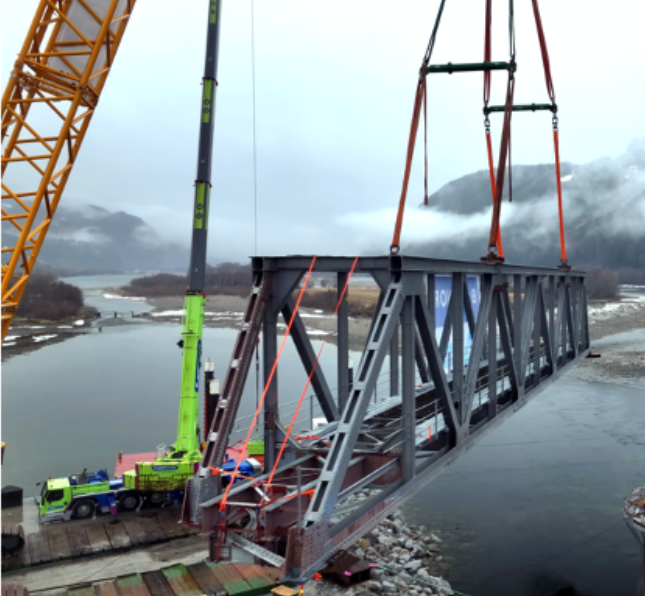

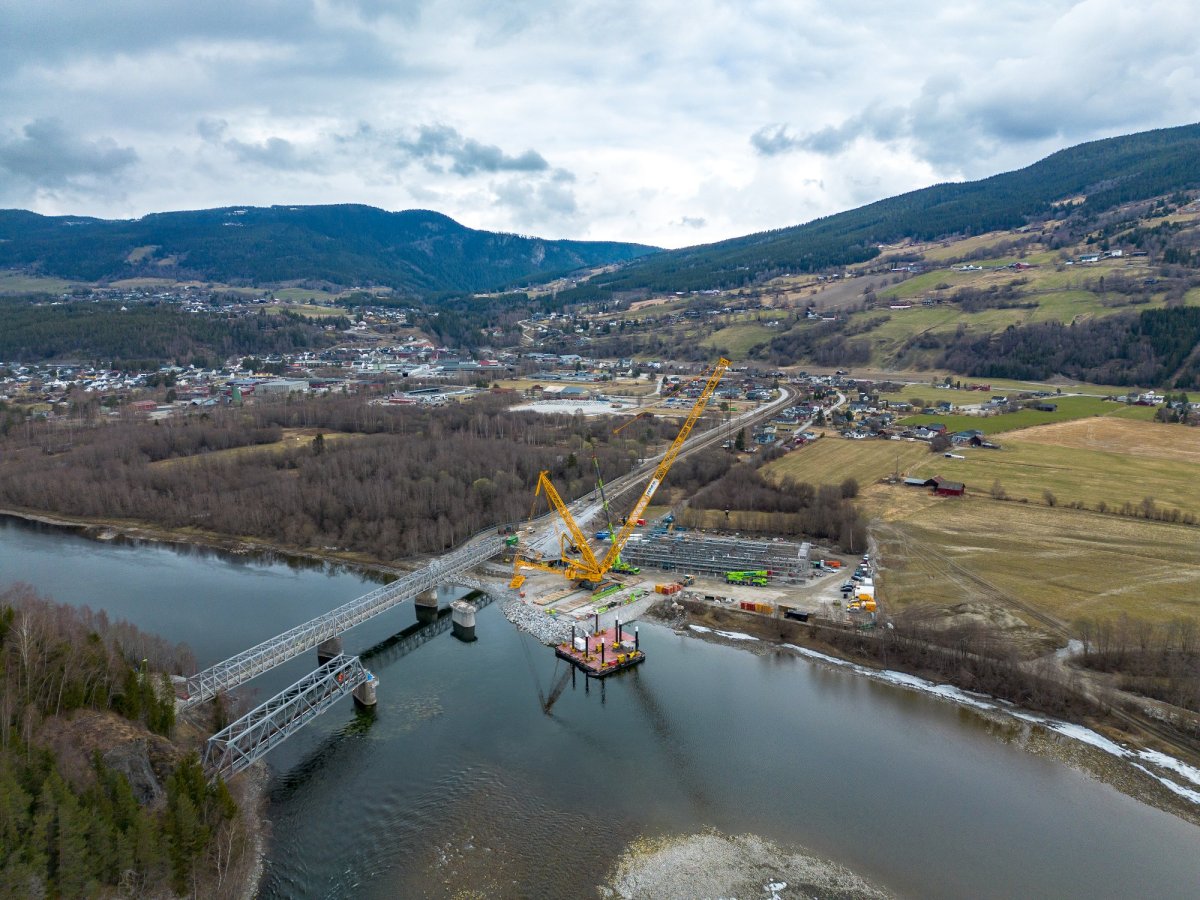

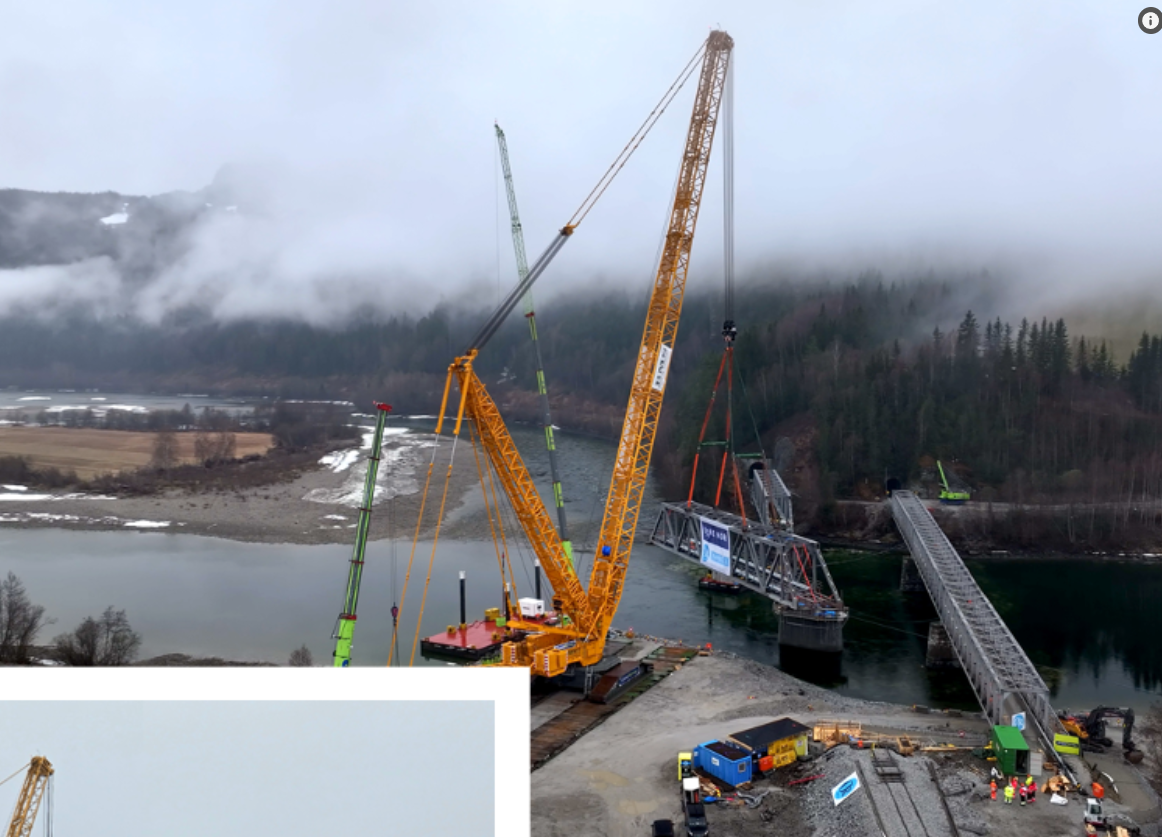

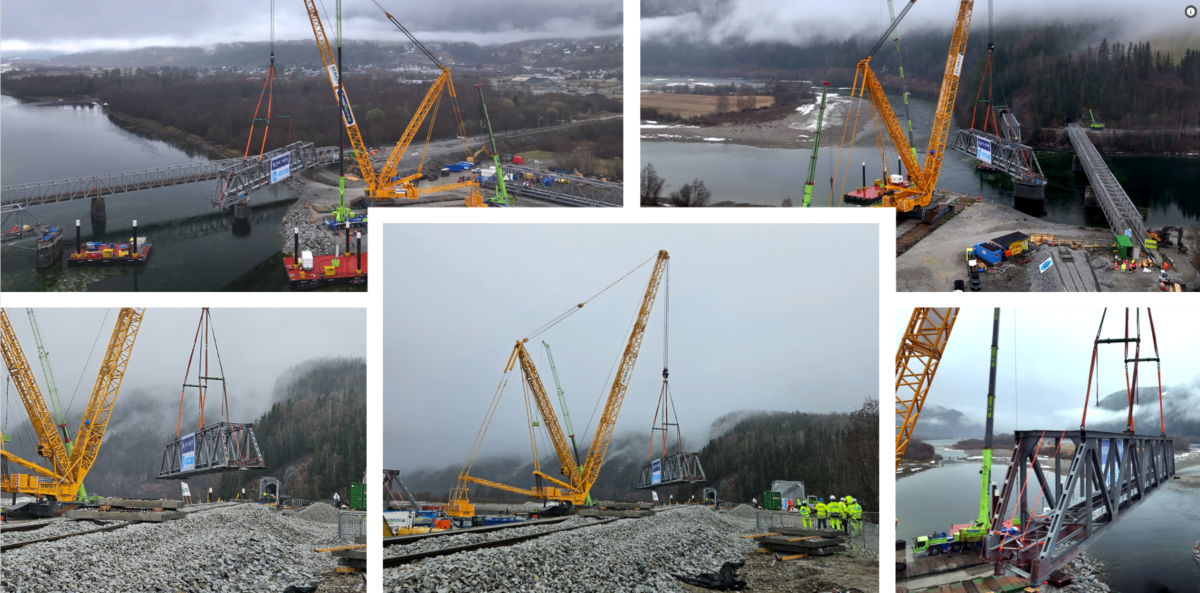

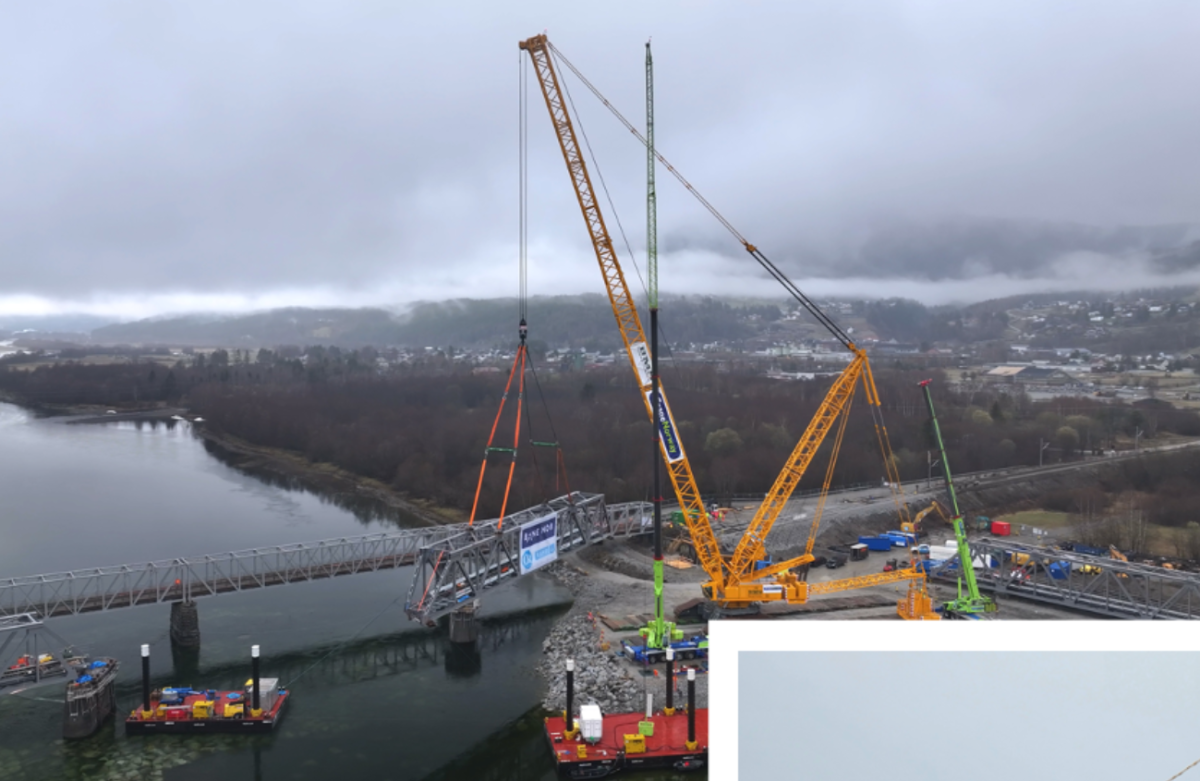

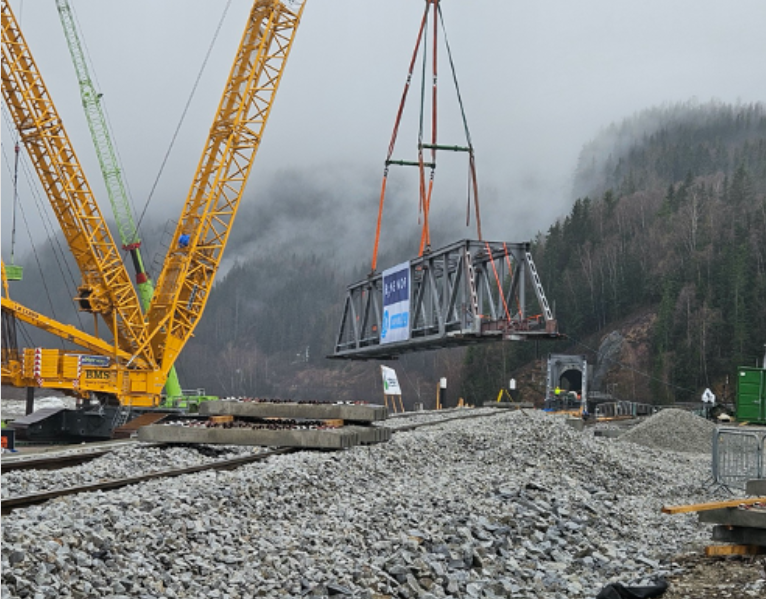

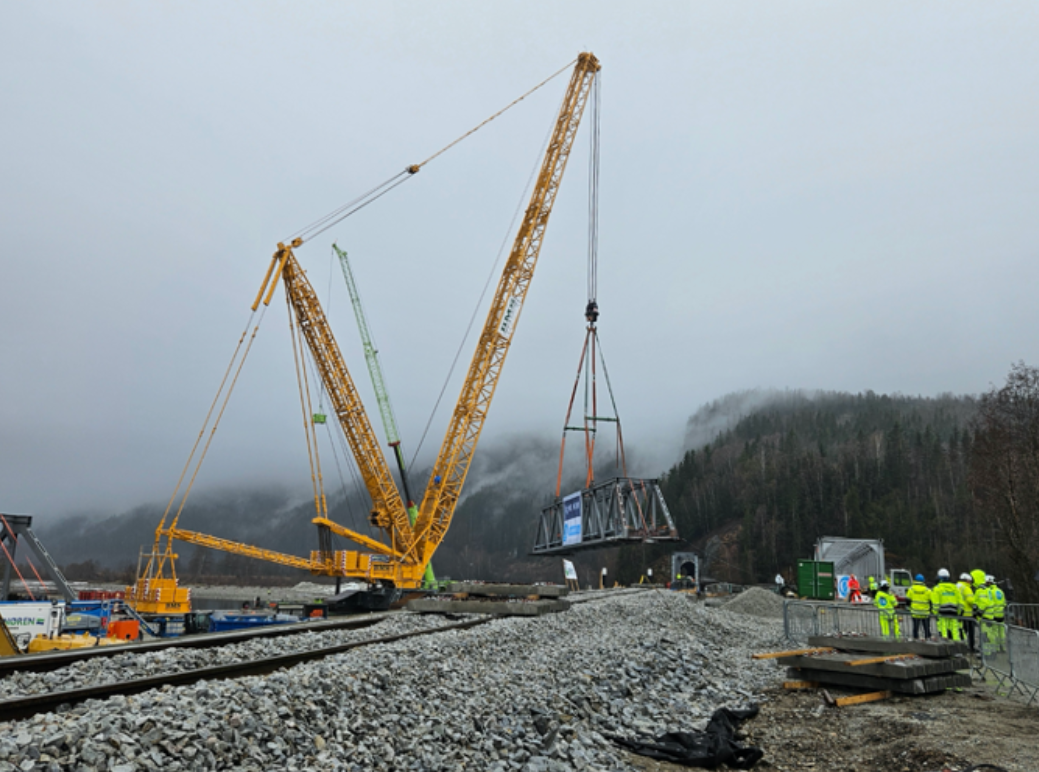

The first bridge section will soon fly for the last time for a while we hope



[Bucket on wheels]



[Bucket on wheels]



[Lancs Lad]

View attachment 59904View attachment 59905View attachment 59903

Have you got a YouTube link? Awesome stuff



[Bucket on wheels]

Have you got a YouTube link? Awesome stuff

They are unfortunately done with the middle section
Each section is 270 tonnes. Center crane to center lift is at the longest 57 metres.
If I find a video of the lift itself, I will post it
But here you can see right here and now

Bruelementene løftes på plass på Randklev Bru

ljsp.lwcdn.com



[Lancs Lad]

They are unfortunately done with the middle section
Each section is 270 tonnes. Center crane to center lift is at the longest 57 metres.
If I find a video of the lift itself, I will post it
But here you can see right here and now

Bruelementene løftes på plass på Randklev Bru

ljsp.lwcdn.com

AHH missed that.
Some deflection on little green!



[Bucket on wheels]



[Bucket on wheels]

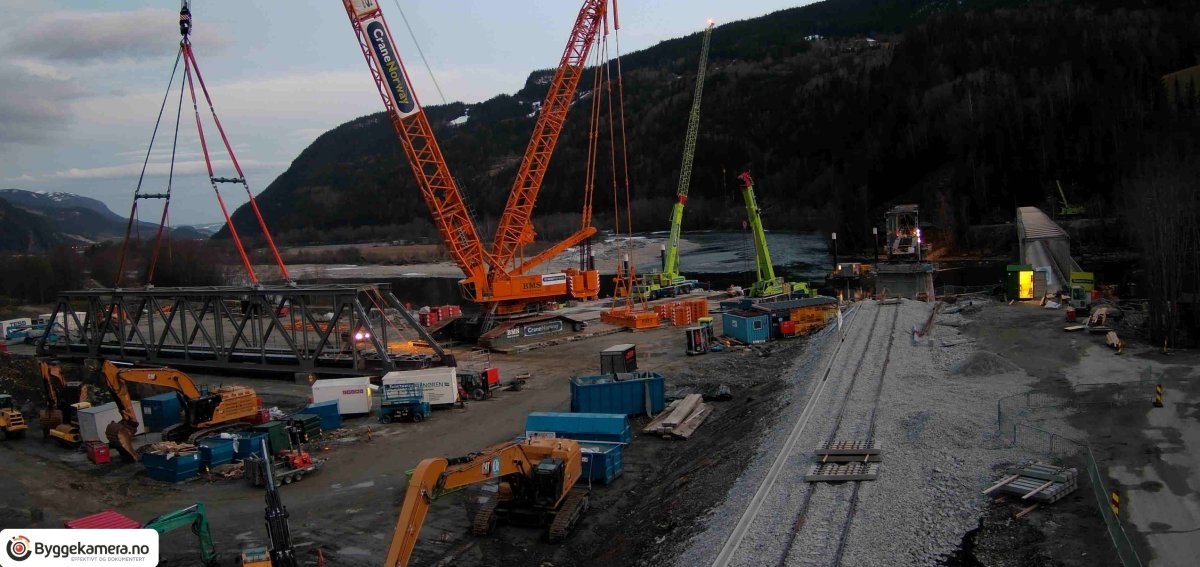

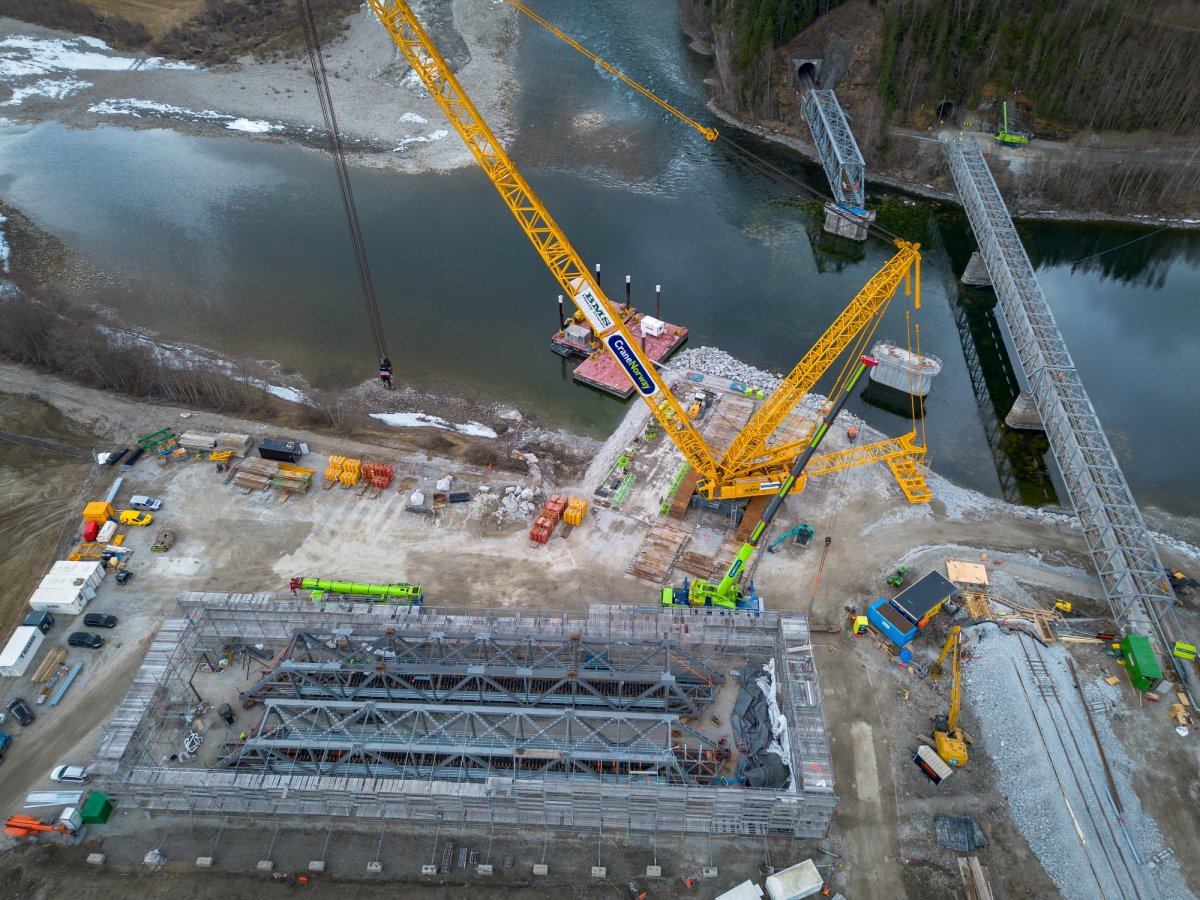

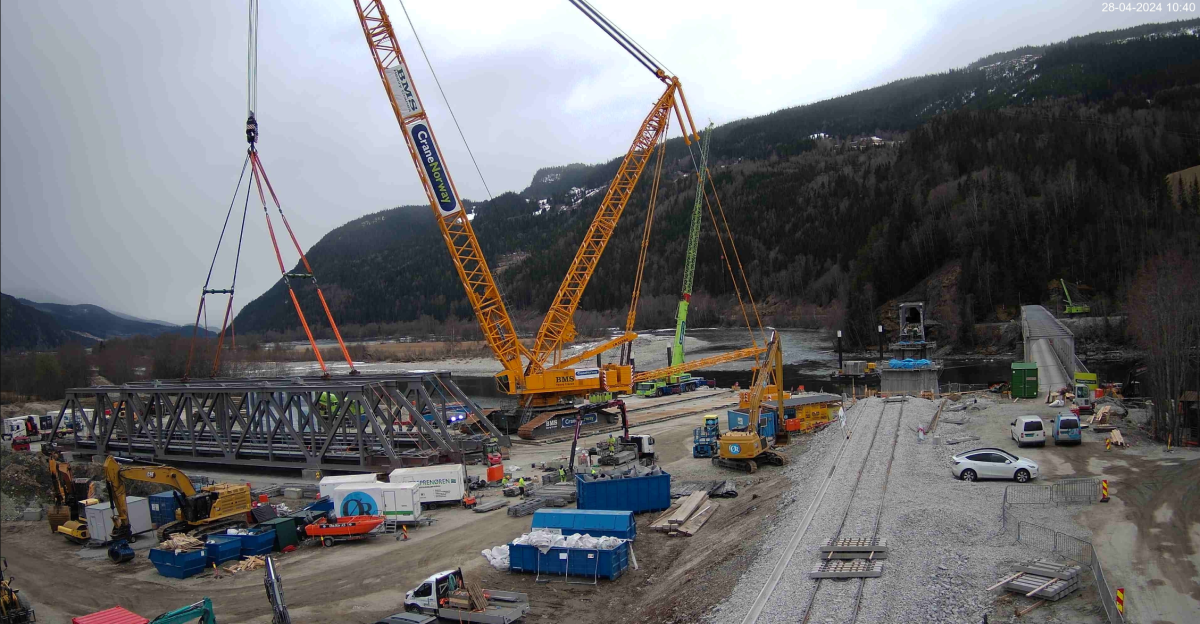

Ready for tomorrow



[V8Druid]

Ready for tomorrow
View attachment 59922

been busy re-configuring the big boy



[Bucket on wheels]

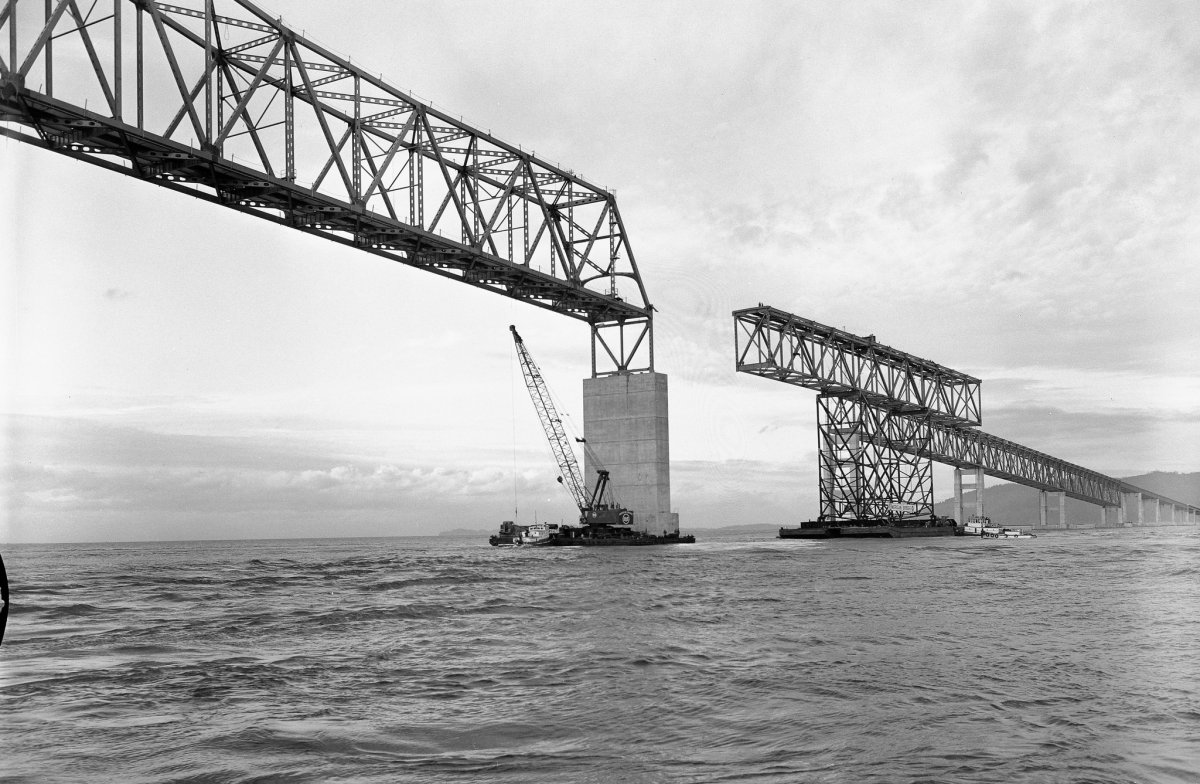

We've crossed the Astoria-Megler bridge several times in the last week, and I marvel at the engineering and builders that allowed this to be! This photo from 1965 shows the last section being placed. It was assembled in Portland, barged down and then set during high tide. Rivets and metal had only 1/4" error base, and the men on the barge and tugs and on the bridge had to coordinate all sorts of possibilities.



[Left hooker]

IIRC Kocurek were building these .... discussed at length on the old CEF at one time

Teledipper Archives | Kocurek - Kocurek Excavators Ltd - Industry leaders in design and manufacture of bespoke excavator equipment and modifications

kocurek.com

Teledipper | Kocurek - Kocurek Excavators Ltd - Industry leaders in design and manufacture of bespoke excavator equipment and modifications

A simple yet effective concept the Kocurek Teledipper has been utilised on demanding projects around the globe. With continual design and development to ensure it can constantly meet customers’ demands has seen it placed on high profile jobs on tight deadlines. Designed for fast shaft sinking up...

kocurek.com

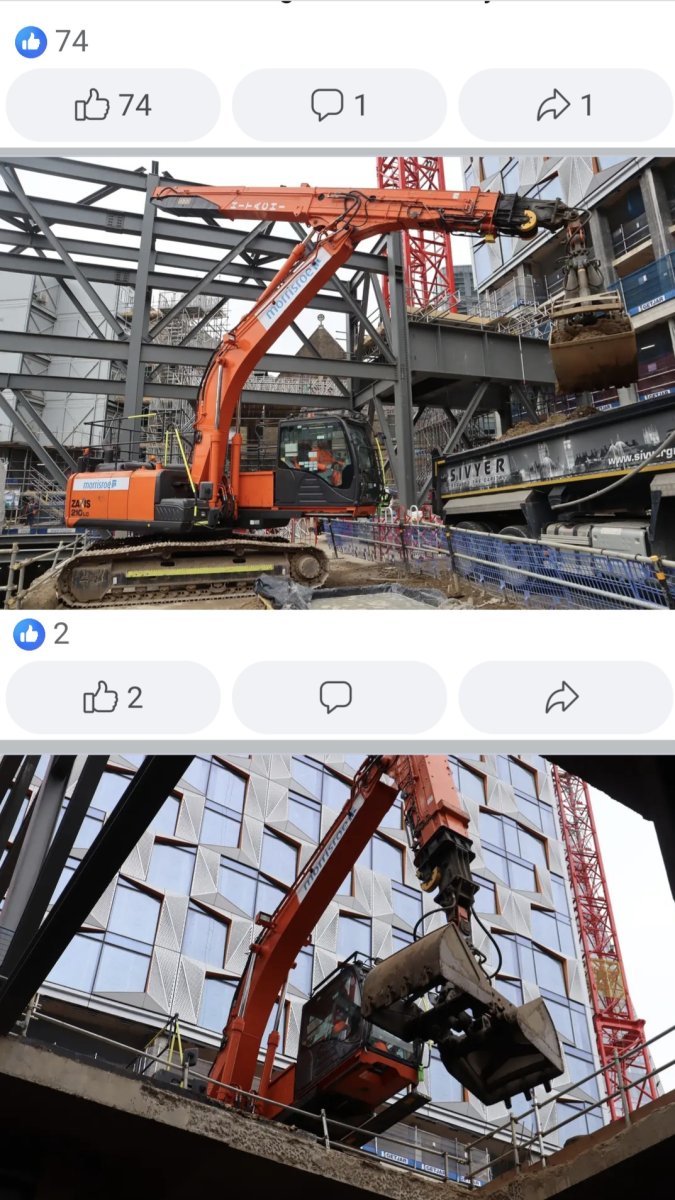

The Hitachi one is from its own production line



[V8Druid]

The Hitachi one is from its own production line

is it indeed !



[Bucket on wheels]

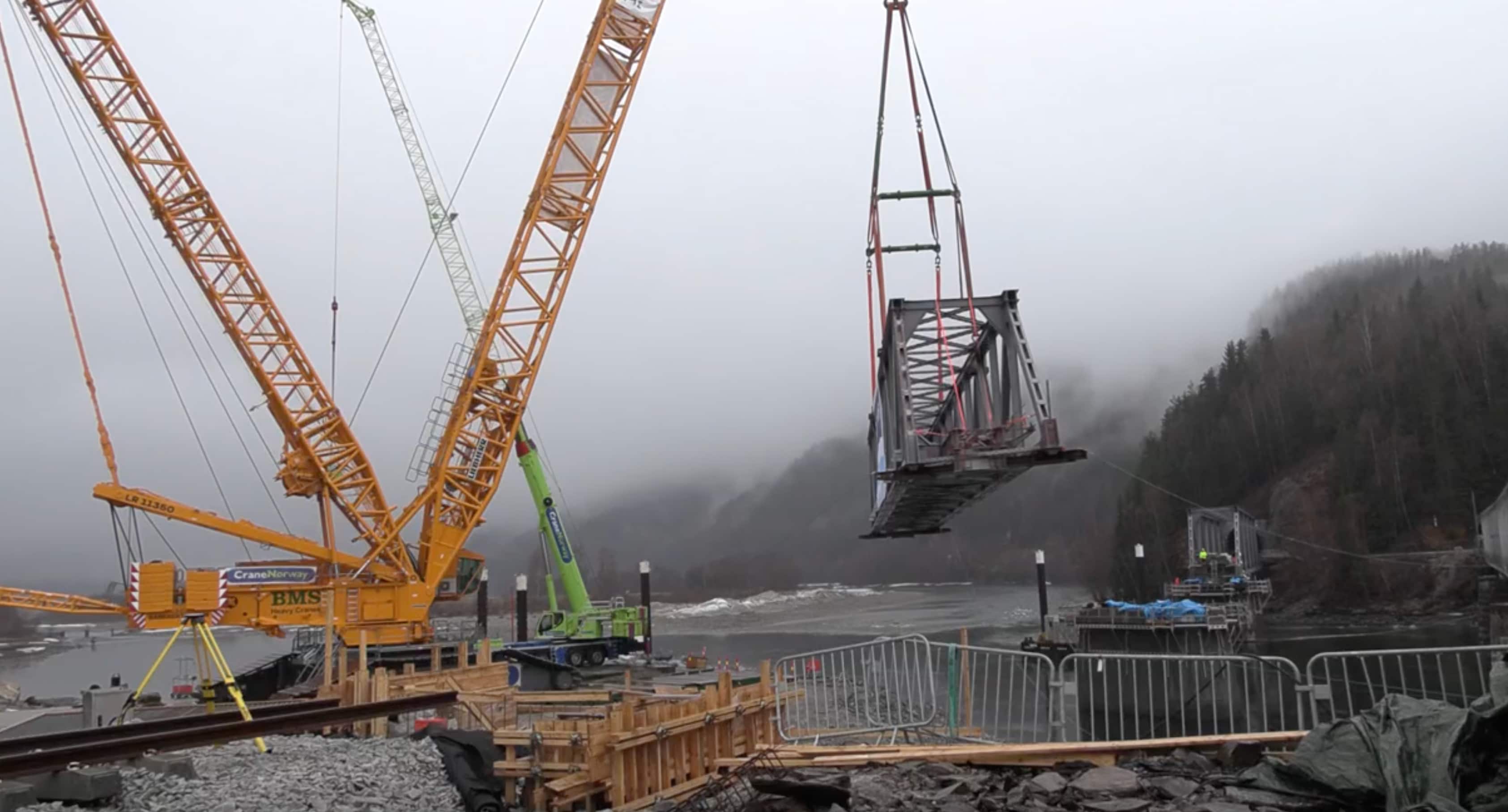

See yesterday's lift, of the first bridge section. Here is a video of the entire sequence.
The Lifting itself. begins 2 hours and 7 minutes into the video.

Se løftet ved Randkleiv bru - Dølen-TV

tv.dolen.no



[Bucket on wheels]

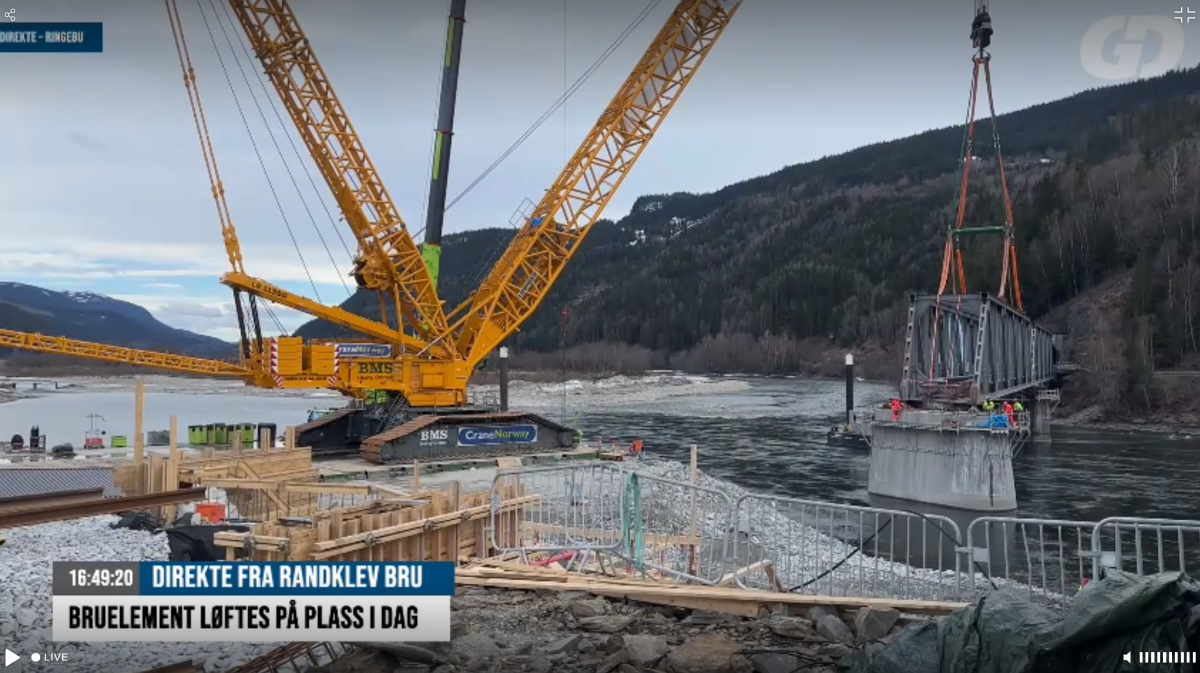

The live broadcast of. Today's and last bridge section's lift. Can be seen live here.

Bruelementene løftes på plass på Randklev Bru

ljsp.lwcdn.com
