Yea had two wires that where left that had no feed at all coming to them so just took a guess and put them in the two spare connections but everything else works as it should👍.. used the tester and trial and error.

jordan
Do you have the 12v live constant?

Big Jordy

Big Jordy

Well-known member
Do you have the 12v live constant?
Don’t think I do tried the two spare wires as I’ll call them with ignition on and off and not a volt coming to them according to my multimeter… but honestly I’d be lieing if I said I had the foggiest about electrical jiggery pokery.. I got all the lights on the trailer working so I’m happy👍

B

Brendan

Well-known member

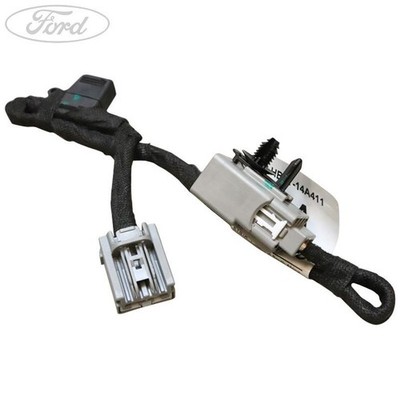

That's the jumper cable that goes in the box under the front passenger seat, if you open the box and it's not there you won't have a 12v constant to your towbar wiring, so if you hook up a caravan no feed for fridge or if wanting to run split charge relay for tipper trailer

S

Steve

Well-known member
Don’t think I do tried the two spare wires as I’ll call them with ignition on and off and not a volt coming to them according to my multimeter… but honestly I’d be lieing if I said I had the foggiest about electrical jiggery pokery.. I got all the lights on the trailer working so I’m happy👍
My guess would be those wires go to the small limit switch in the socket which switches off the fog light when the trailer is plugged in to stop glare. I only found this out when trying to work out how the main dealer was able to justify the cost of a genuine socket
